88-00 GMC K3500 Aluminum Radiator — Champion 1520
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
Specifications

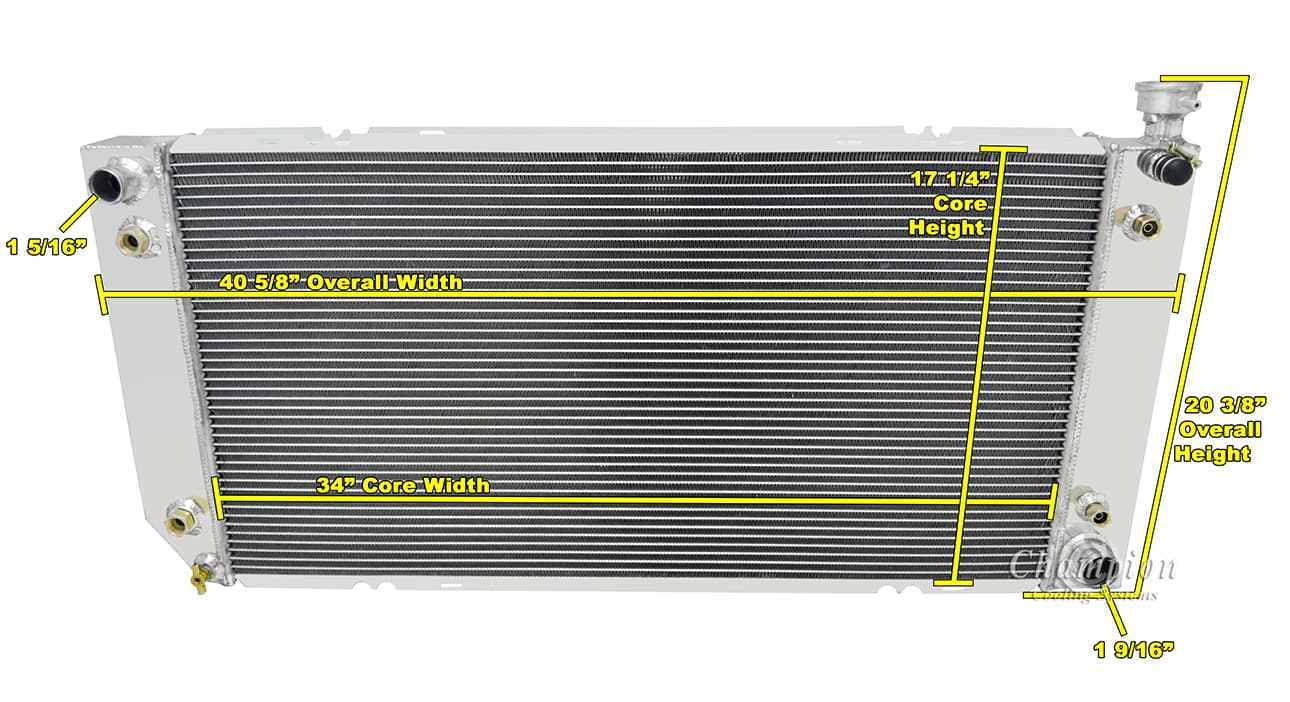

| Core Width | 34 |
|---|---|
| Tank Width | 2.5 |
| Core Height | 17.25 |
| Core Material | Aluminum |
| Mounting Type | Saddle |
| Overall Width | 40.625 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 1.3125 |
| Inlet Location | Driver |
| Overall Height | 20.375 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 1.5625 |
| Outlet Location | Passenger |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/2-20 Straight Thread, Inverted Flare |
