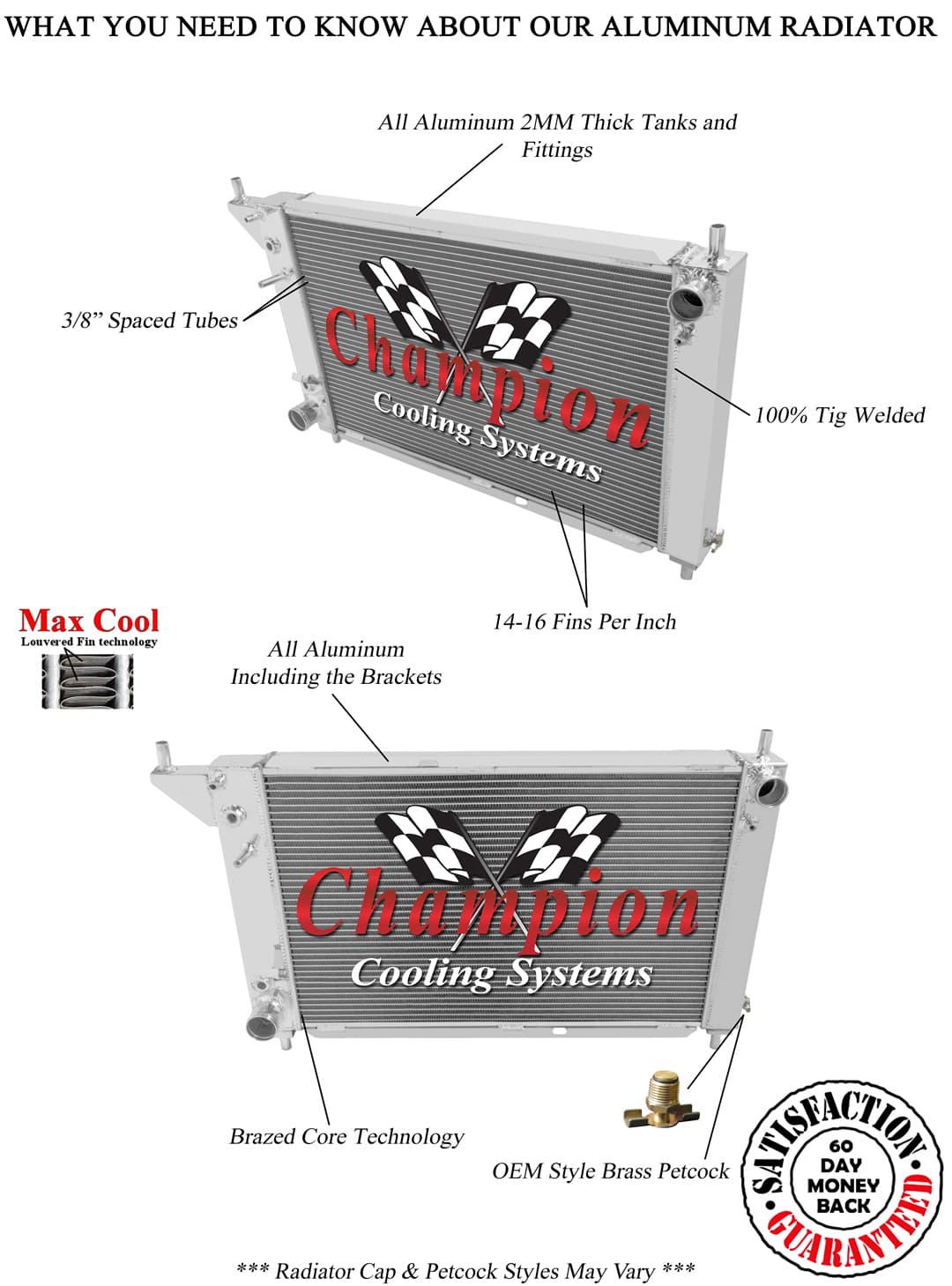

Champion Cooling Aluminum Radiator 1775
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
This part fits: show vehiclesThis part fits: hide vehicles
- 1996 Ford Mustang — 4.6L 281ci V8
Specifications
| Core Width | 24.25 |
|---|---|
| Tank Width | 2.5 |
| Core Height | 15.75 |
| Core Material | Aluminum |
| Mounting Type | Pin |
| Overall Width | 31.75 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 1.5 |
| Inlet Location | Passenger |
| Overall Height | 19.5 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 1.75 |
| Outlet Location | Driver |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | No |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/4-18NPT |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Select Core Configuration
From $237.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
Champion Cooling Aluminum Radiator 1775—
$237.00
