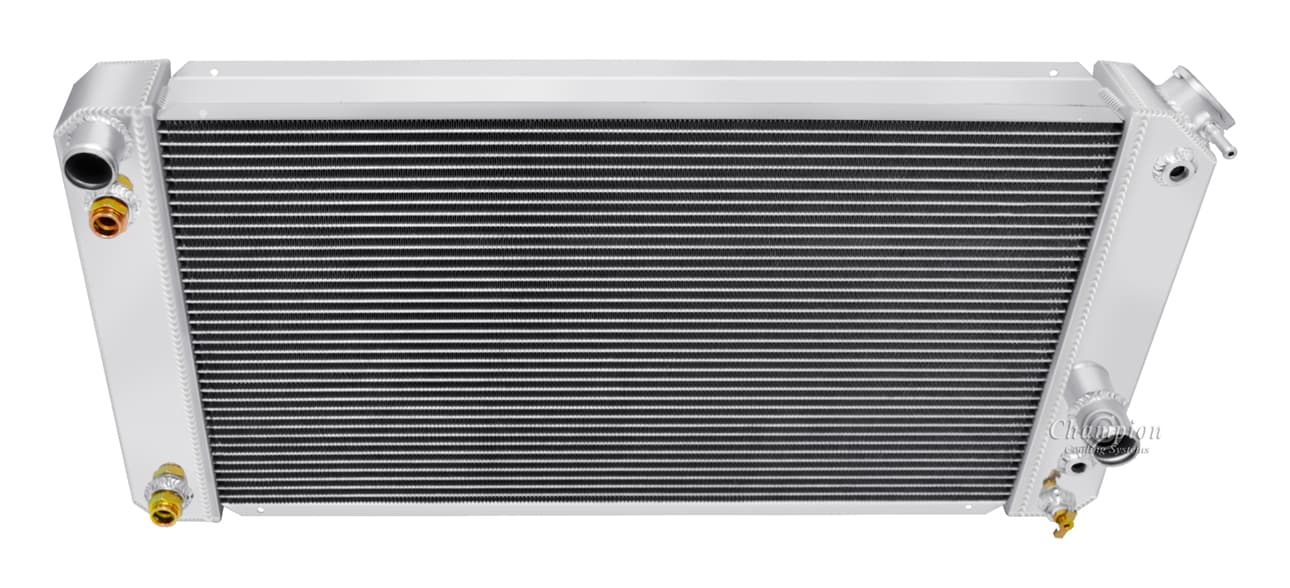

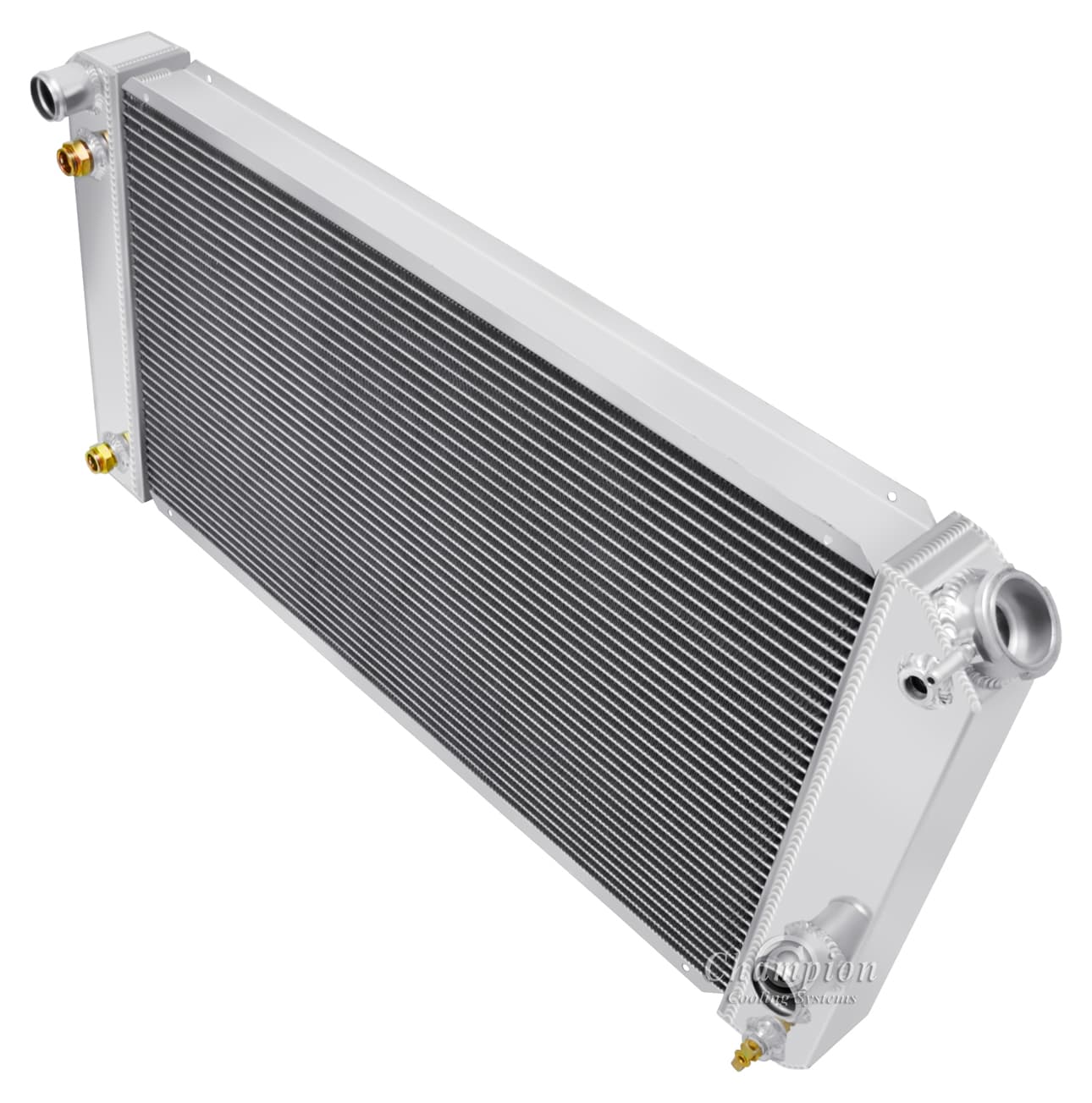

Champion Cooling Aluminum Radiator 1826

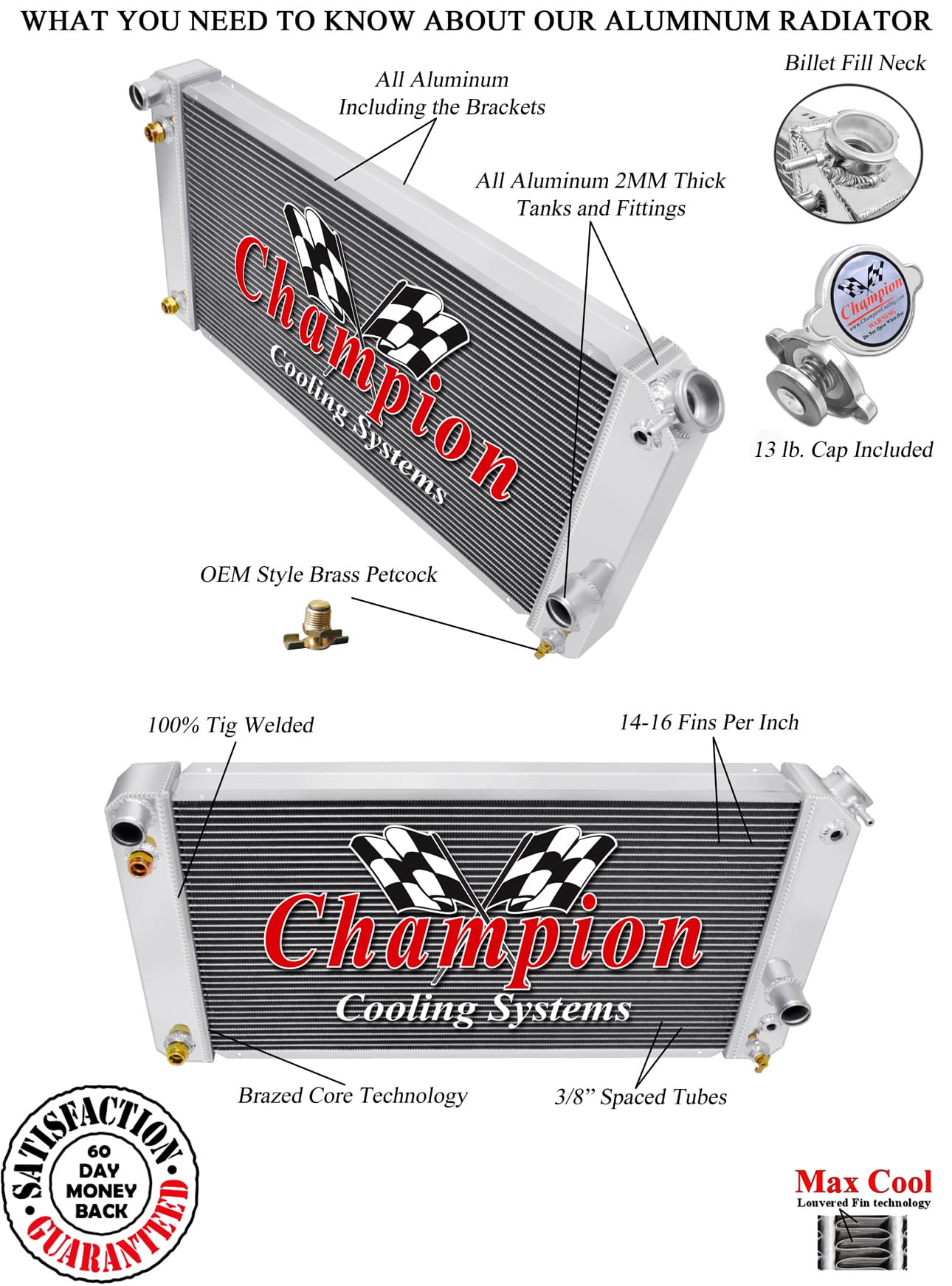

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

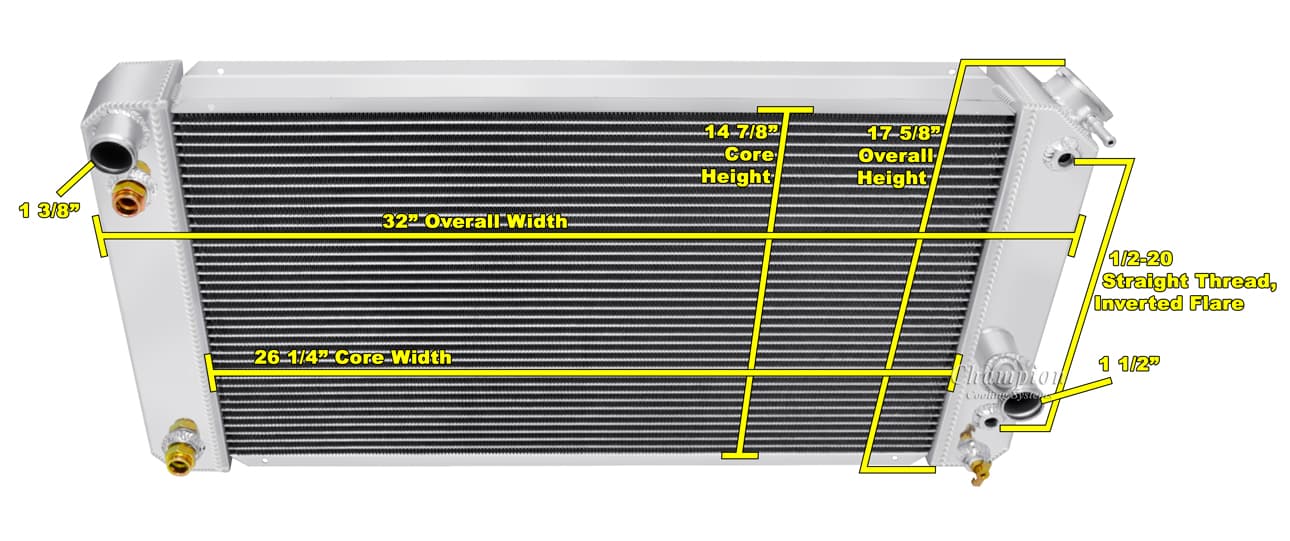

Specifications
| Core Width | 26.25 |
|---|---|
| Tank Width | 2.625 |
| Core Height | 14.875 |
| Core Material | Aluminum |
| Mounting Type | Pin |
| Overall Width | 32 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 1.375 |
| Inlet Location | Driver |
| Overall Height | 17.625 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 1.5 |
| Outlet Location | Passenger |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Internal Engine Oil Cooler | Yes |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Fitting Type | Metric 20-1.5 |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/2-20 Straight Thread, Inverted Flare |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Select Core Configuration
From $287.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
Champion Cooling Aluminum Radiator 1826—
$287.00
