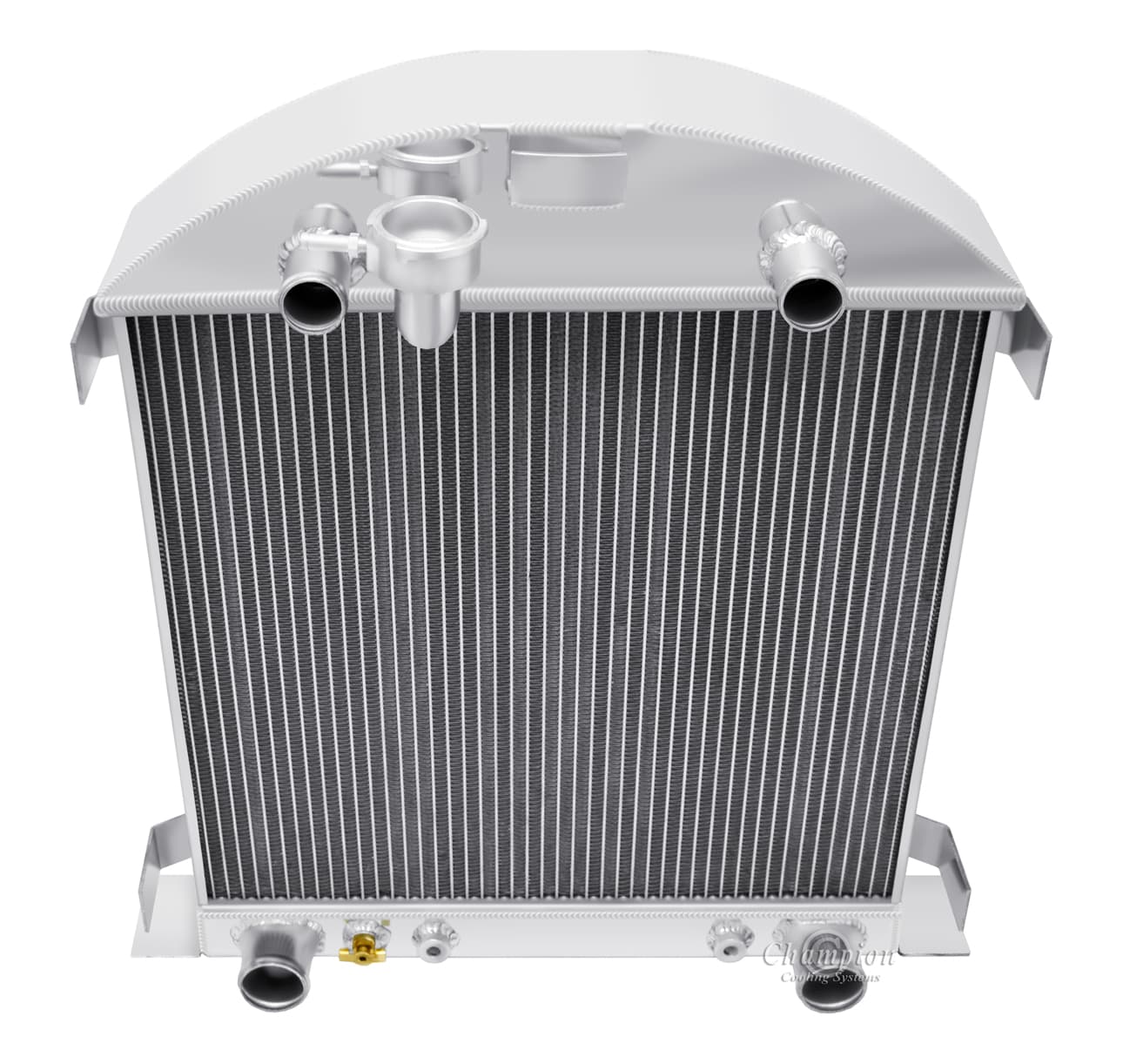

Champion Cooling Aluminum Radiator 2829FH

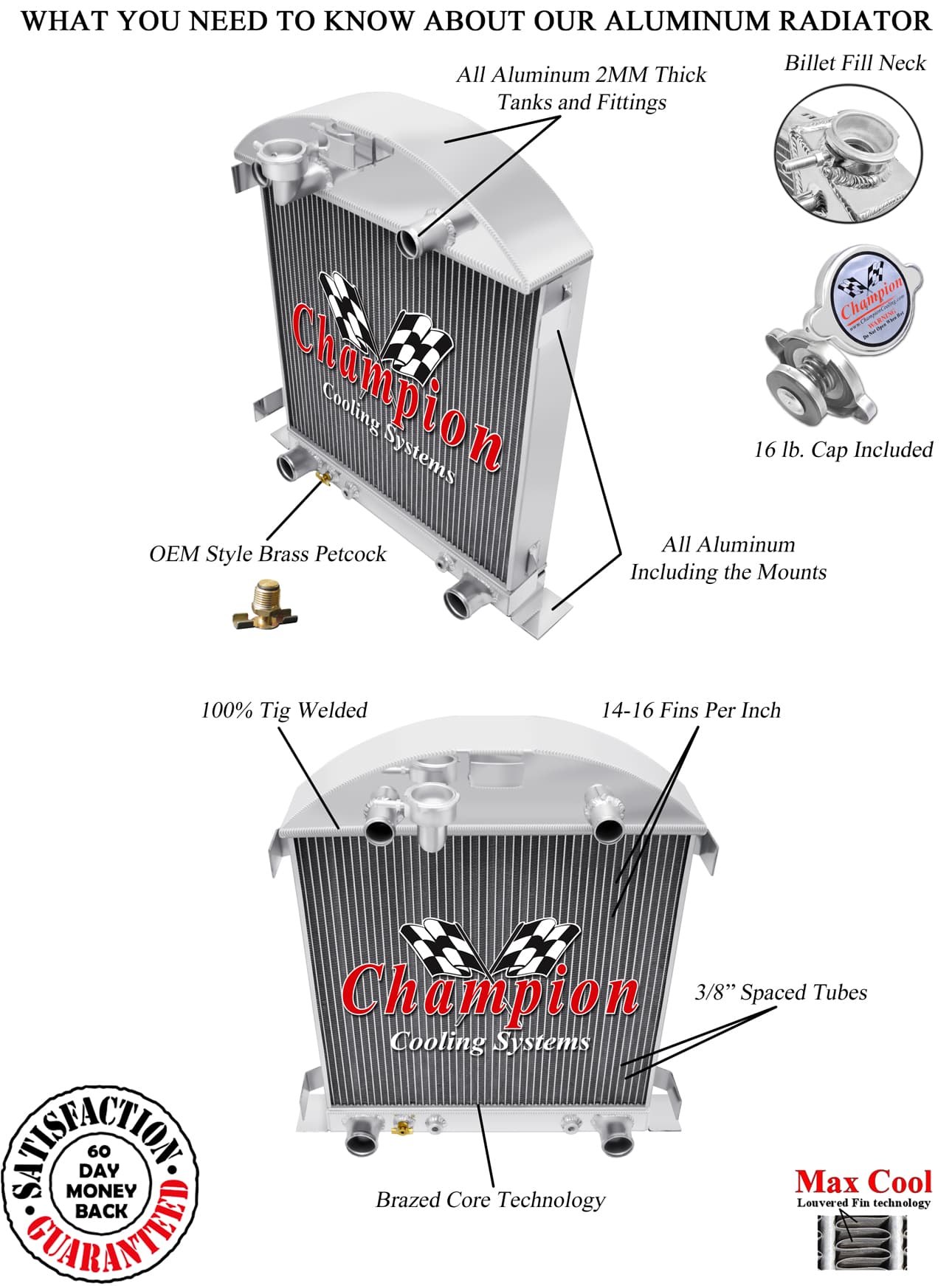

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
Specifications
| Core Width | 18.375 |
|---|---|
| Tank Width | UPPER: 4.25 - LOWER: 3 |
| Core Height | 18 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 22.625 |
| Tank Material | Aluminum |
| Core Thickness | 2.5 |
| Inlet Diameter | 1.25 |
| Inlet Location | Dual - Driver & Pass |
| Overall Height | 24 |
| Core Tube Width | 0.75 |
| Outlet Diameter | 1.75 |
| Outlet Location | Dual - Driver & Pass |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/8-27NPT |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Select Core Configuration
From $237.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
Champion Cooling Aluminum Radiator 2829FH—
$237.00
