Name: Champion Cooling Aluminum Radiator 4952
Brand: Champion Cooling Systems
SKU: AE4952
Price: 282 USD
Availability: InStock

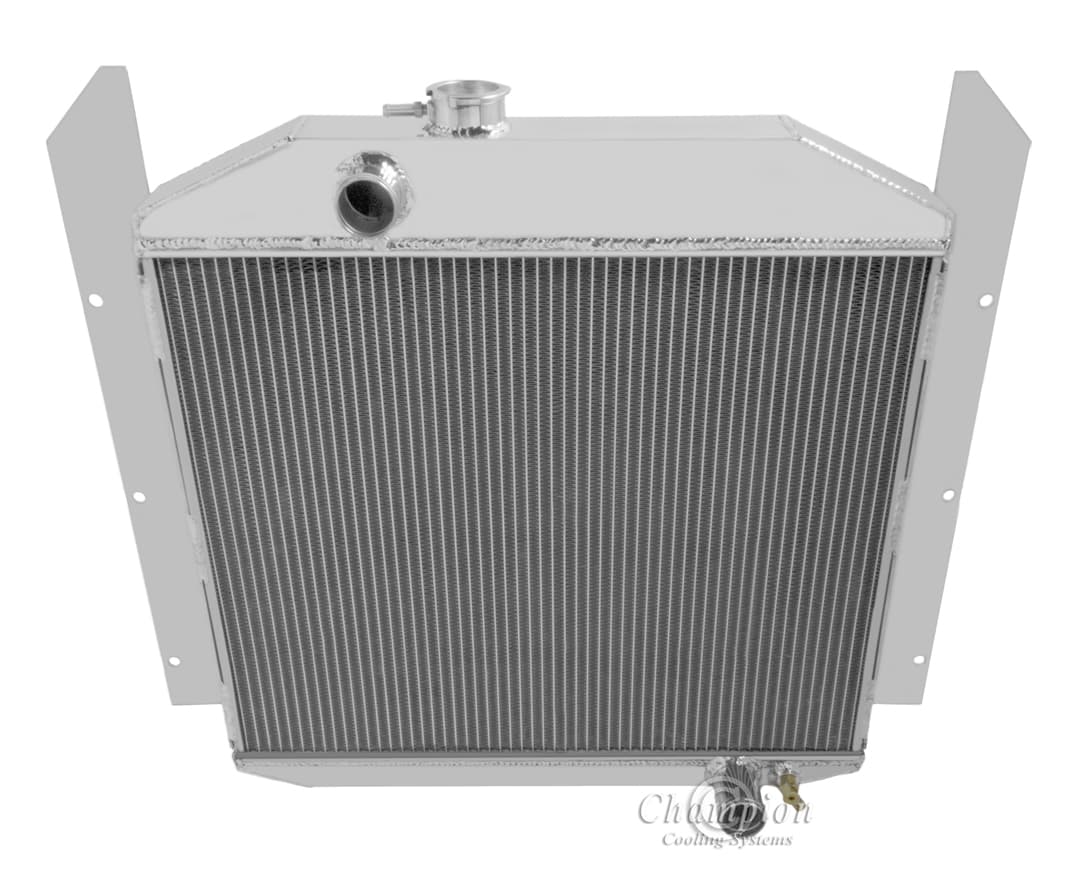

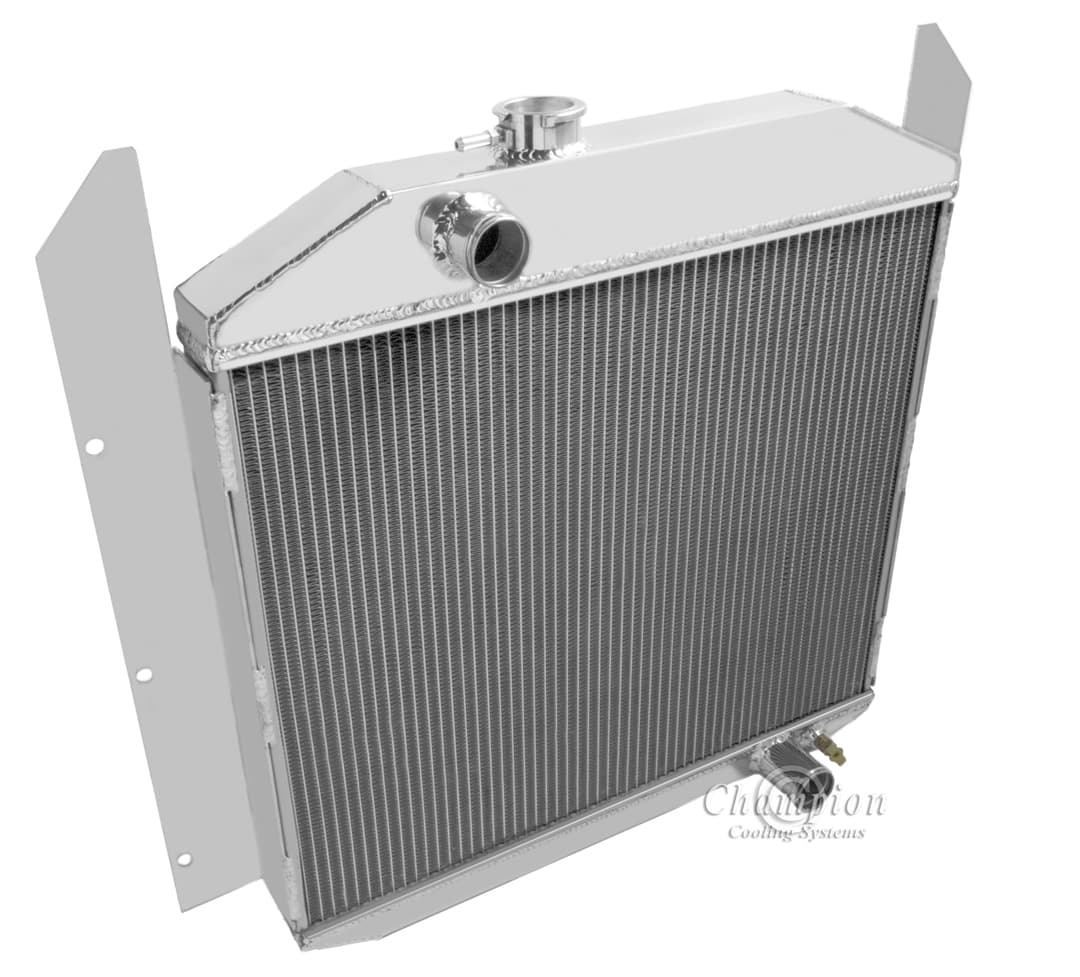

Champion Cooling Aluminum Radiator 4952

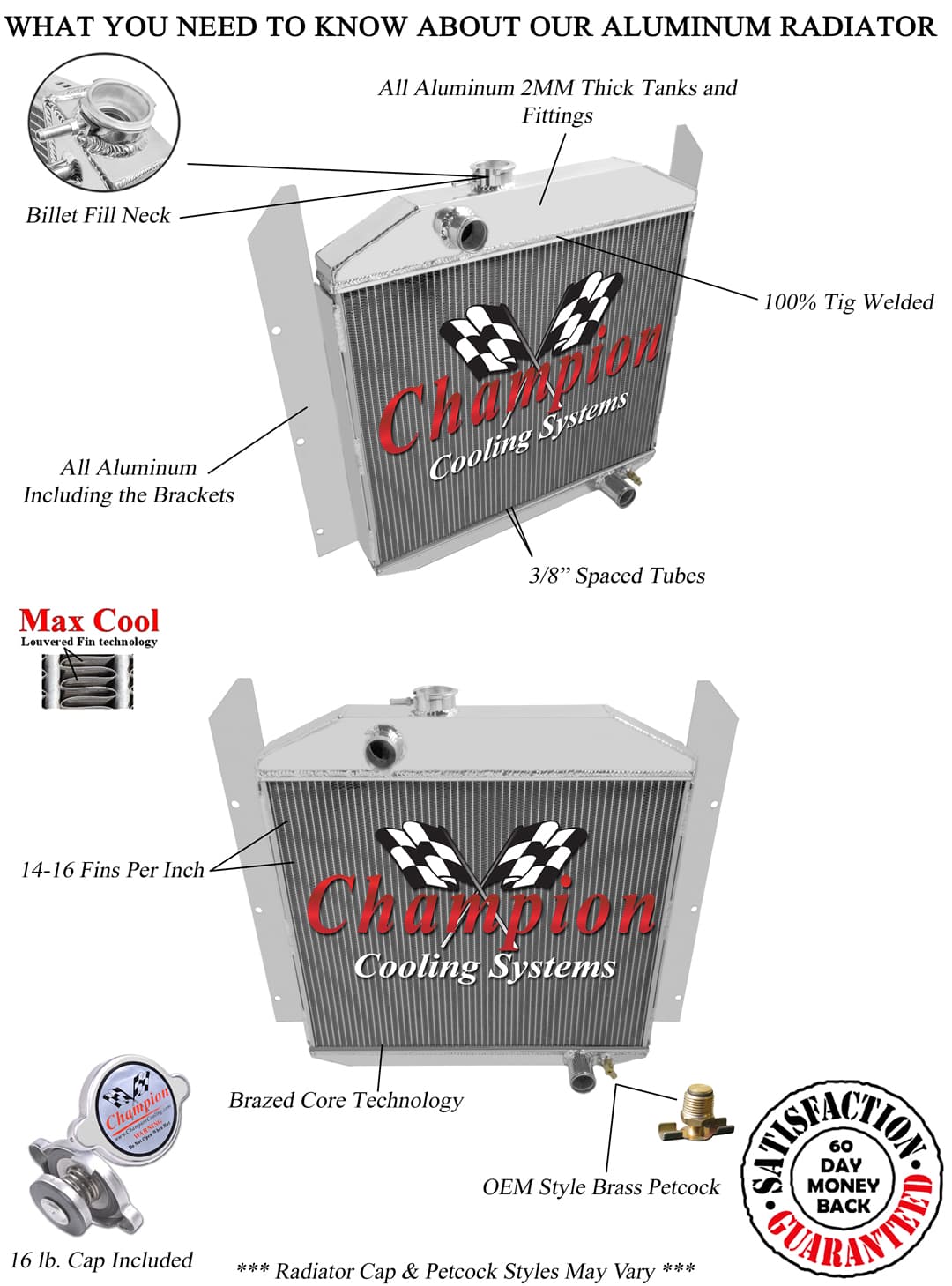

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

This part fits: show vehicles

1949–1952 Studebaker 2R10 — 2.8L 170ci L6
1949–1952 Studebaker 2R11 — 2.8L 170ci L6 / 4.0L 246ci L6
1949–1952 Studebaker 2R15 — 2.8L 170ci L6
1949–1952 Studebaker 2R16 — 4.0L 246ci L6
1949–1952 Studebaker 2R16A — 4.0L 246ci L6
1949–1952 Studebaker 2R17 — 4.0L 246ci L6
1949–1952 Studebaker 2R17A — 4.0L 246ci L6
1949–1952 Studebaker 2R5 — 2.8L 170ci L6
1949–1952 Studebaker 2R6 — 2.8L 170ci L6 / 4.0L 246ci L6
1950–1952 Studebaker 2R14 — 2.8L 170ci L6 / 4.0L 246ci L6

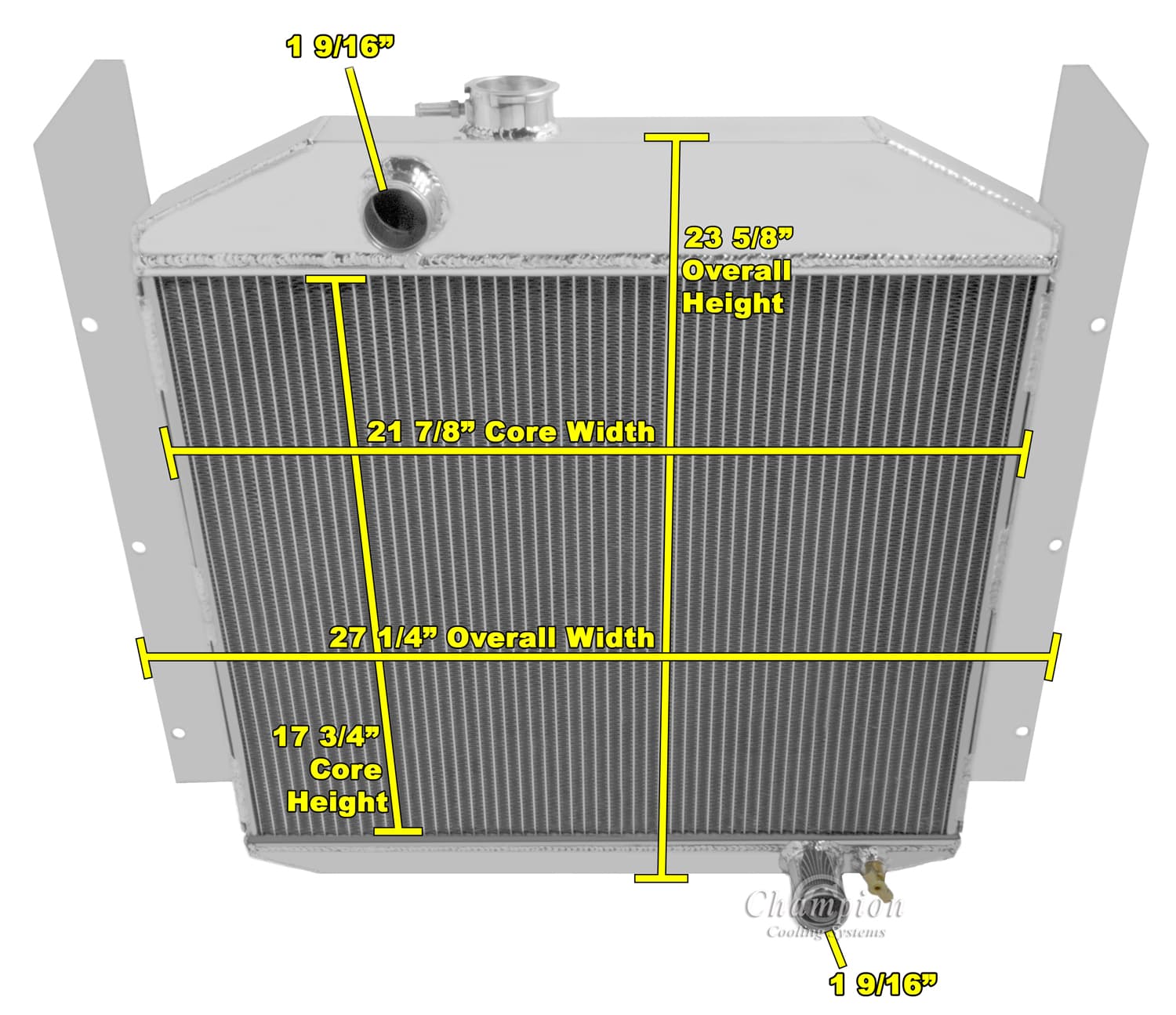

Specifications

Core Width	21.625
Tank Width	2.5
Core Height	17.75
Core Material	Aluminum
Mounting Type	Bracket
Overall Width	27.125
Tank Material	Aluminum
Core Thickness	2
Inlet Diameter	1.5
Inlet Location	Driver
Overall Height	23.5
Core Tube Width	0.56000000000000005
Outlet Diameter	1.5
Outlet Location	Passenger
Core Row Quantity	3 Row
Filler Neck Attached	Yes
Down Flow Or Cross Flow Type	Down Flow
Internal Transmission Oil Cooler	No

Product Information

Shipping & Returns

Select Core Configuration

From $282.00

Expedited shipping available at checkout — overnight options for when the project can’t wait.

Champion Cooling Aluminum Radiator 4952—

$282.00

Select Core Configuration

From $282.00

Expedited shipping available at checkout — overnight options for when the project can’t wait.

Champion Cooling Aluminum Radiator 4952—

$282.00

Complete Your Cooling System

Parts matched to work together with this product.

The shroud, fans, and relay ship together in one box — the radiator ships separately on its own. Order together and skip paying separate shipping later.

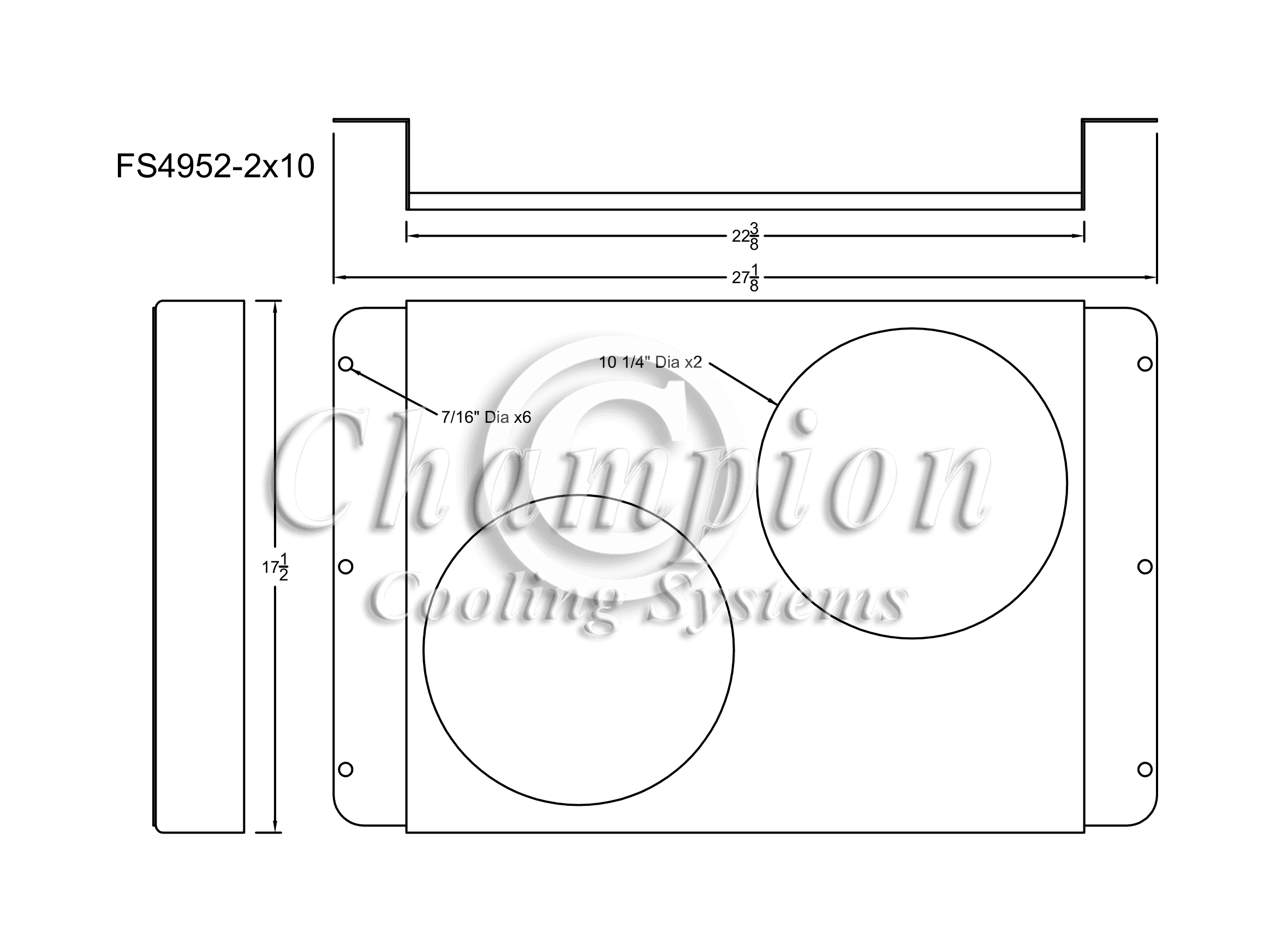

Matched Fan Shroud
