Champion Cooling Aluminum Radiator 57L6
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

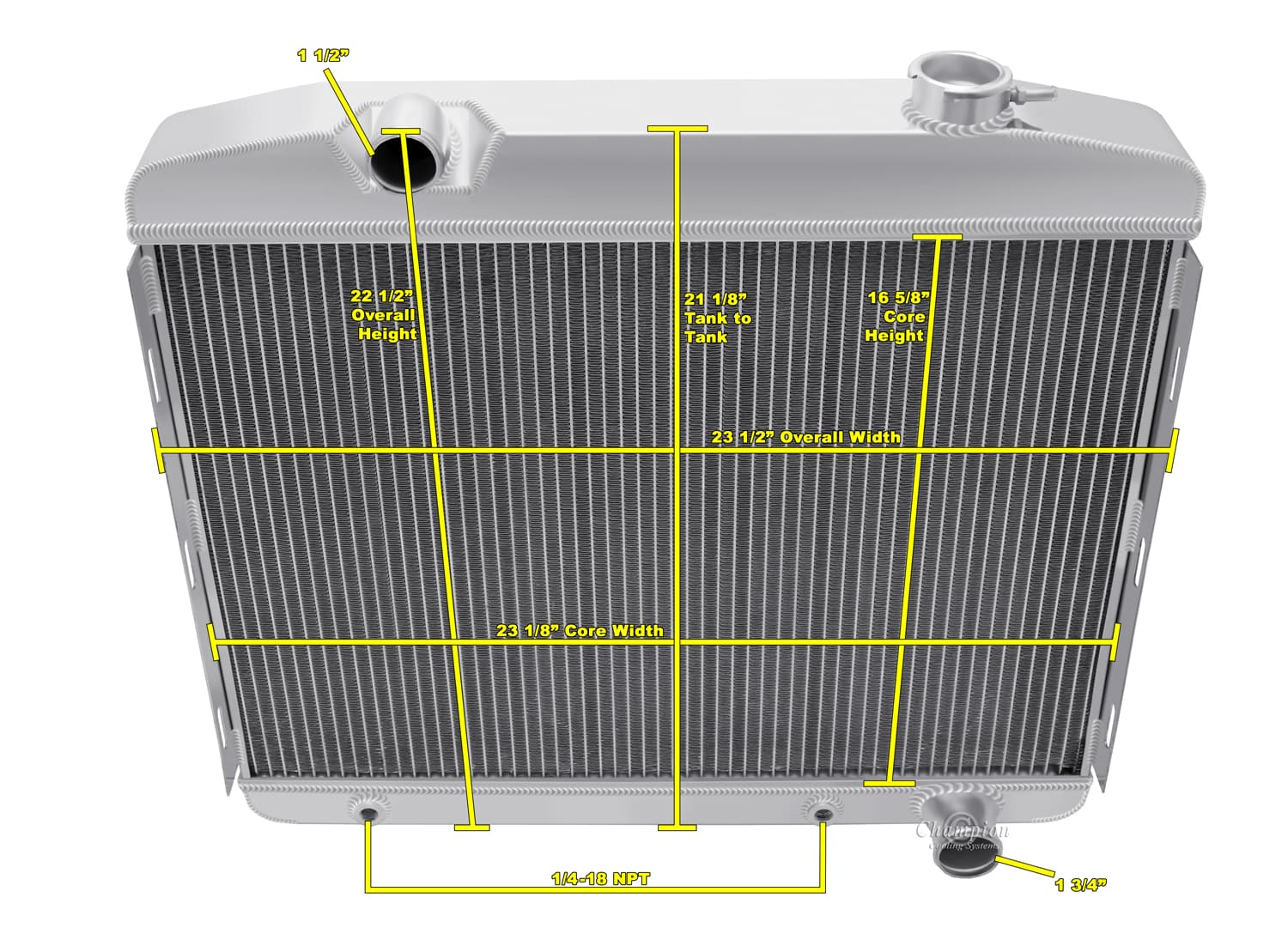

Specifications
| Core Width | 23.125 |
|---|---|
| Tank Width | UPPER: 3 - LOWER: 2.375 |
| Core Height | 16.625 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 23.5 |
| Tank Material | Aluminum |
| Core Thickness | 2 |
| Inlet Diameter | 1.5 |
| Inlet Location | Driver |
| Overall Height | 22.5 |
| Core Tube Width | 0.56000000000000005 |
| Outlet Diameter | 1.75 |
| Outlet Location | Passenger |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/2-20 Straight Thread, Inverted Flare |
