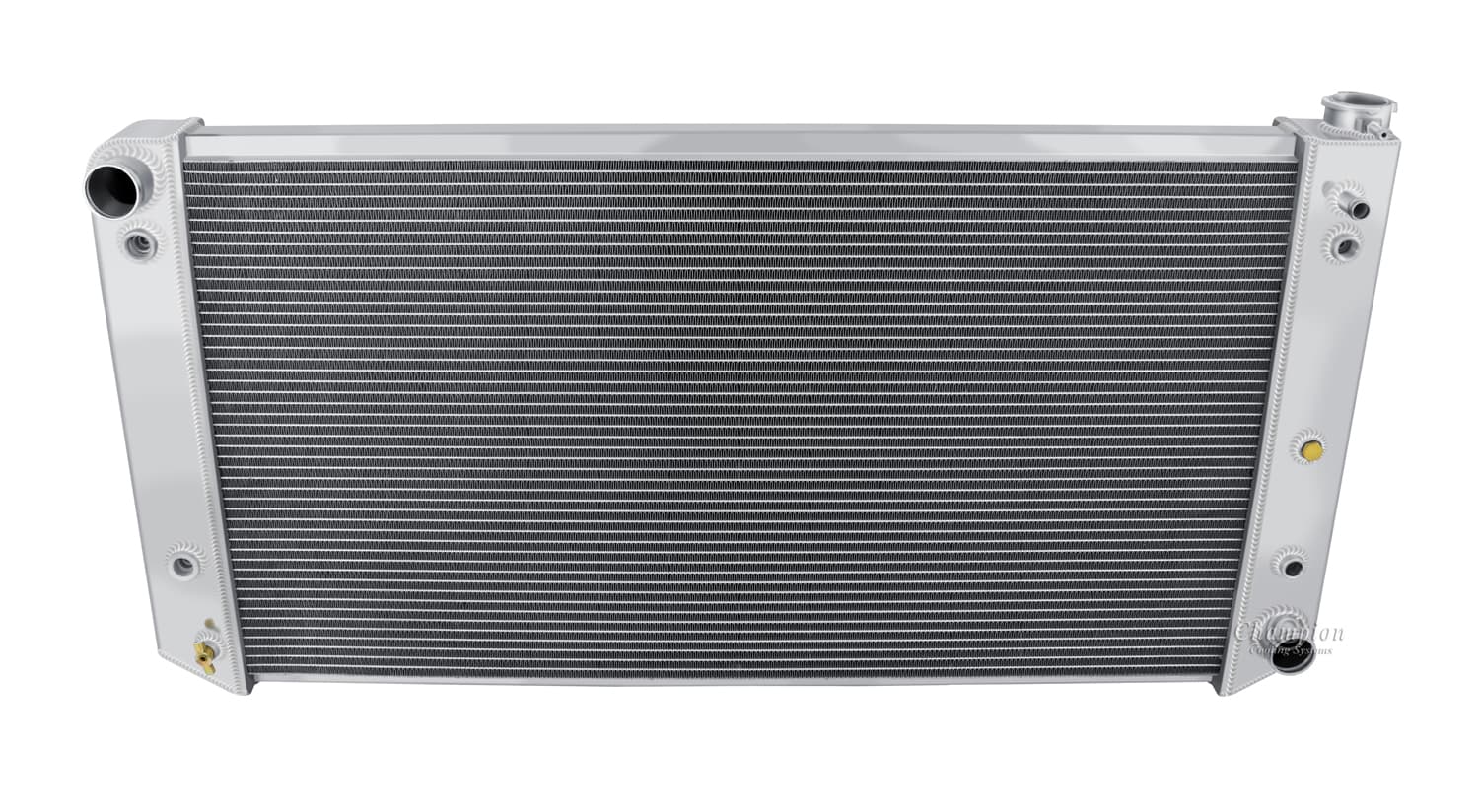

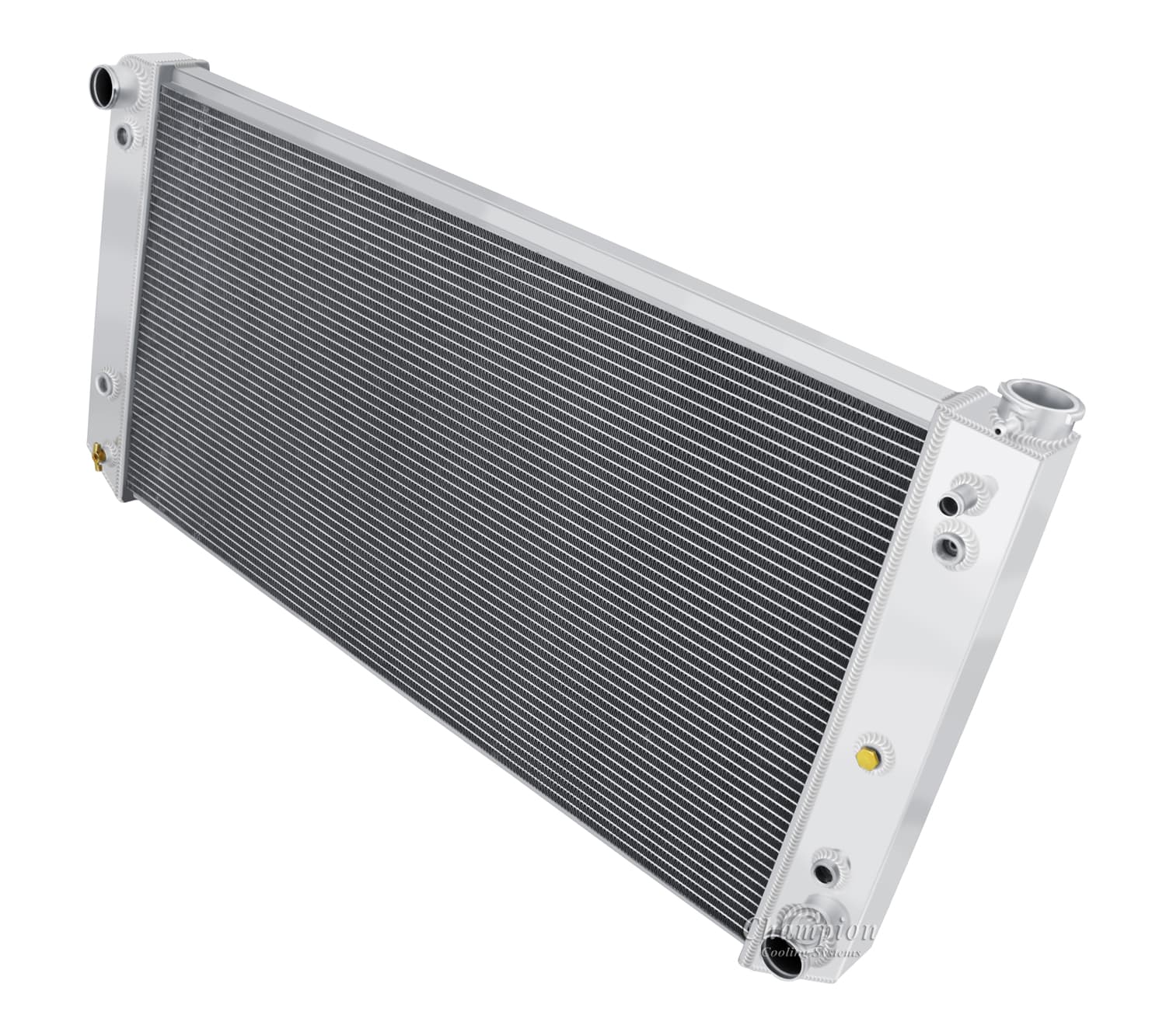

92-93 GMC K3500 Aluminum Radiator — Champion 1492

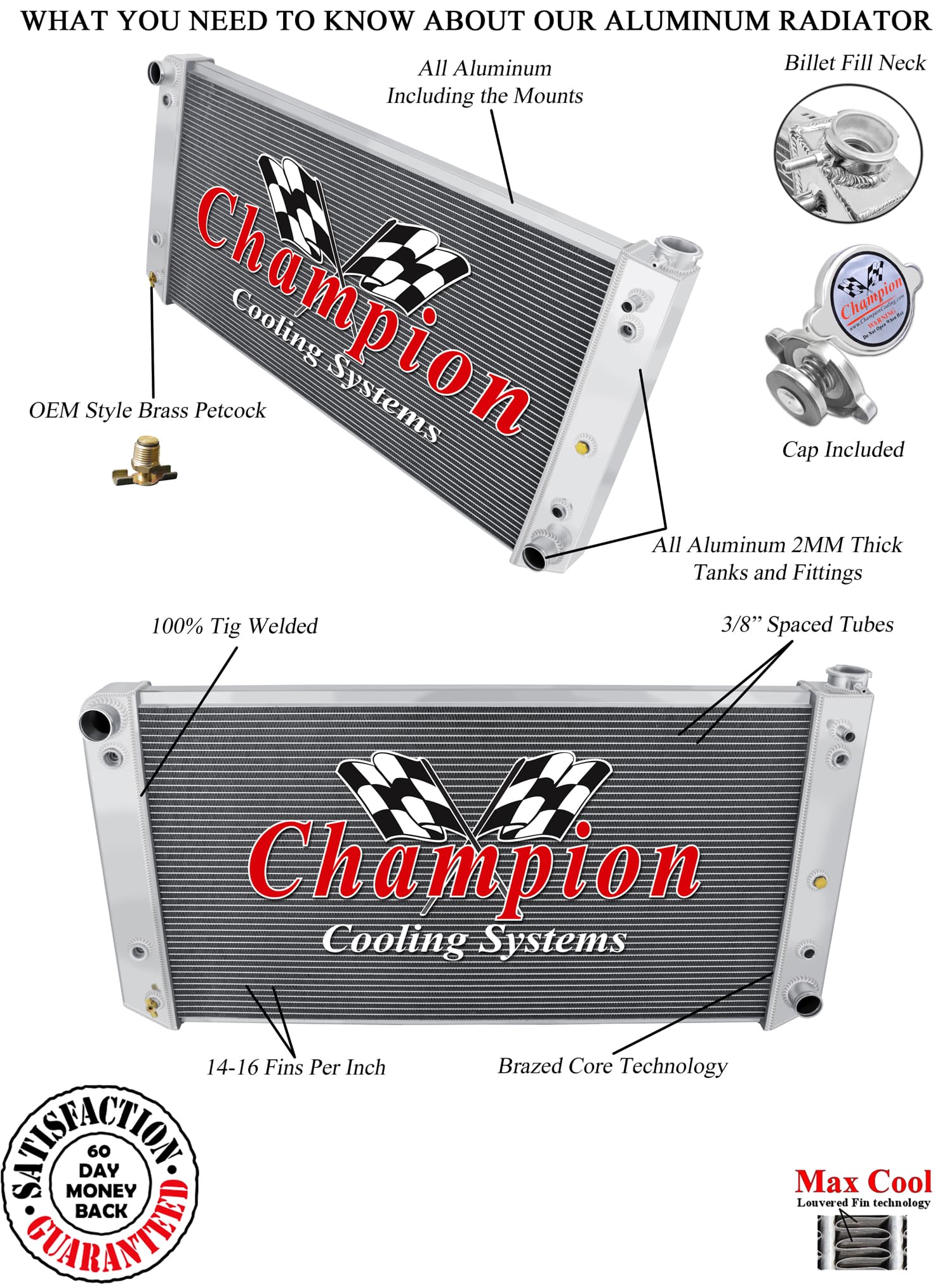

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

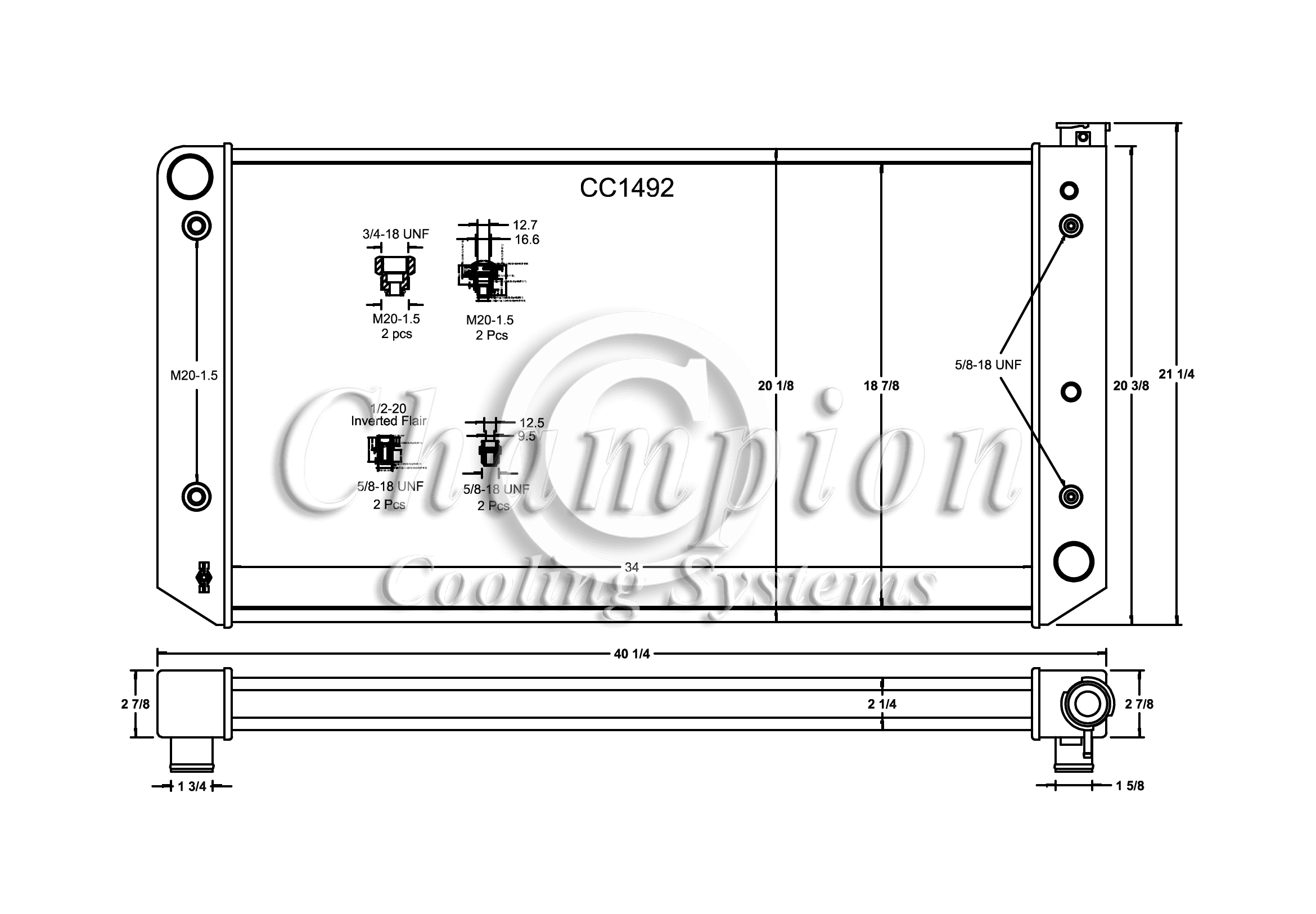

Specifications
| Core Width | 34 |
|---|---|
| Tank Width | 2.875 |
| Core Height | 18.875 |
| Core Material | Aluminum |
| Mounting Type | Saddle |
| Overall Width | 40.25 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 1.75 |
| Inlet Location | Driver |
| Overall Height | 21.25 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 1.625 |
| Outlet Location | Passenger |
| Core Row Quantity | 3 |
| Internal Engine Oil Cooler | Yes |
| Down Flow Or Cross Flow Type | Cross Flow |
| Engine Oil Cooler Fitting Type | Metric 20-1.5 |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 5/8-18NPT |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
From $290.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
92-93 GMC K3500 Aluminum Radiator — Champion 1492—
$290.00
