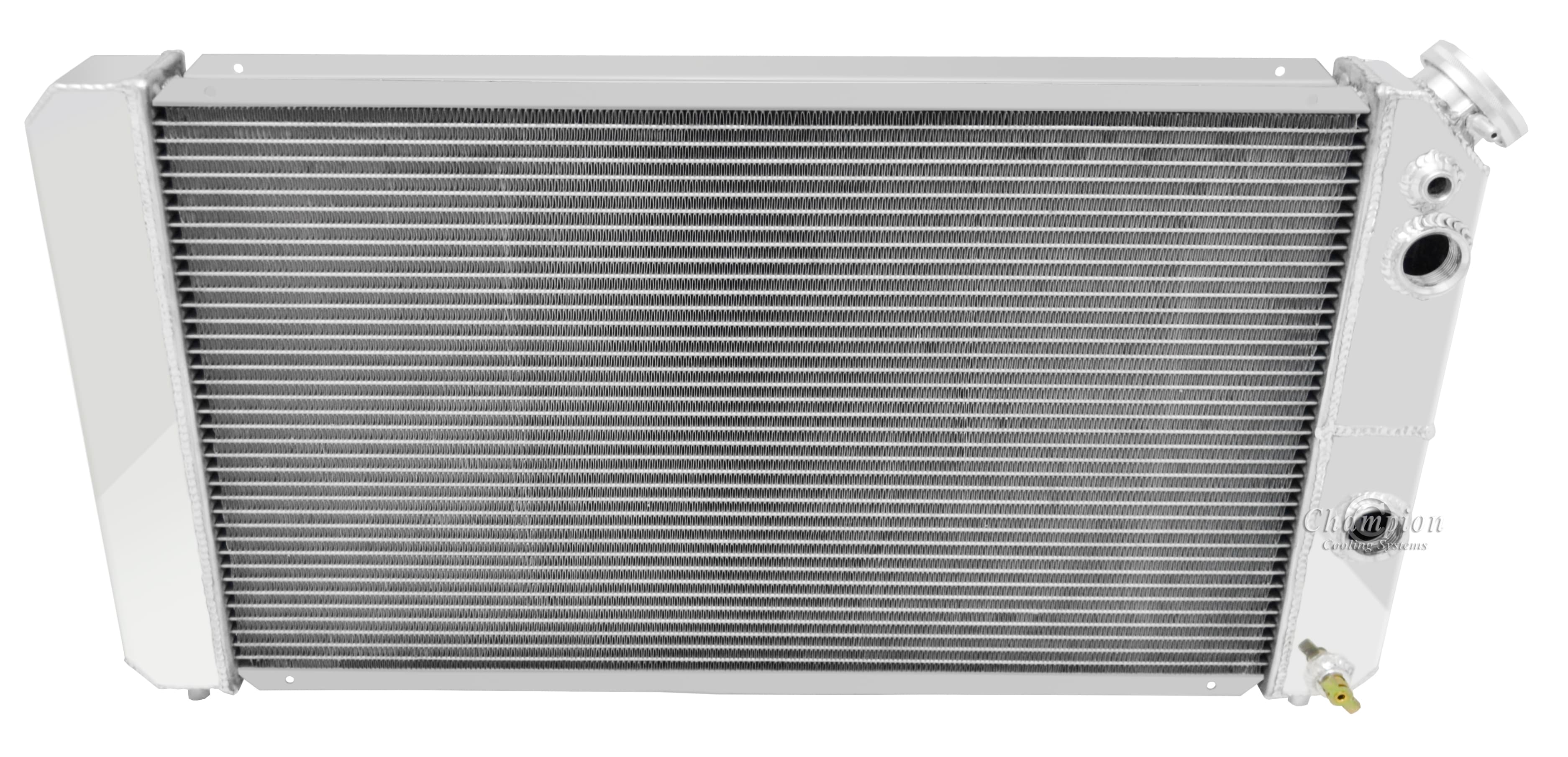

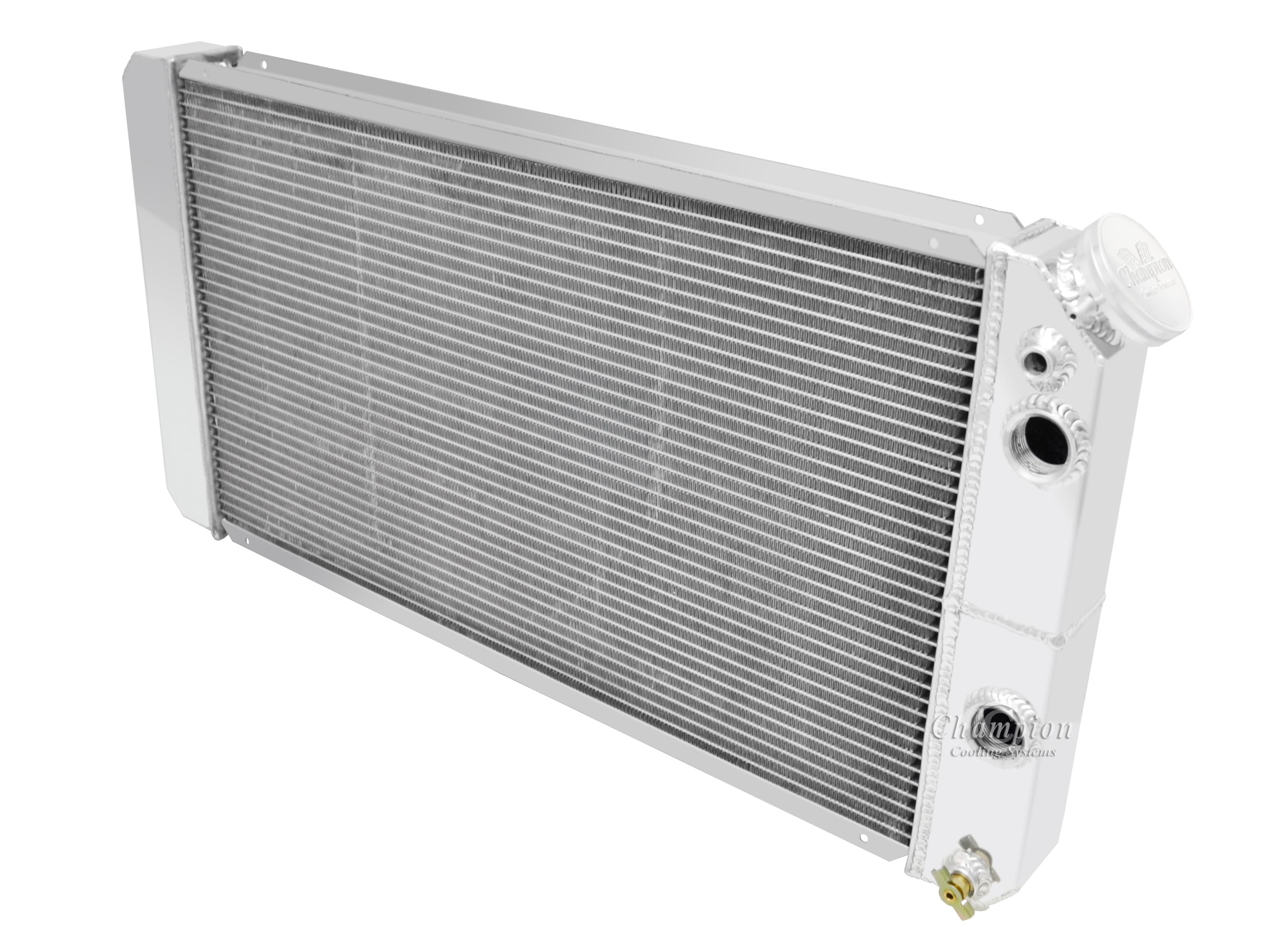

86-05 Chevrolet S10 Aluminum Radiator — Champion 1826DP (Dual Pass)
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
Specifications

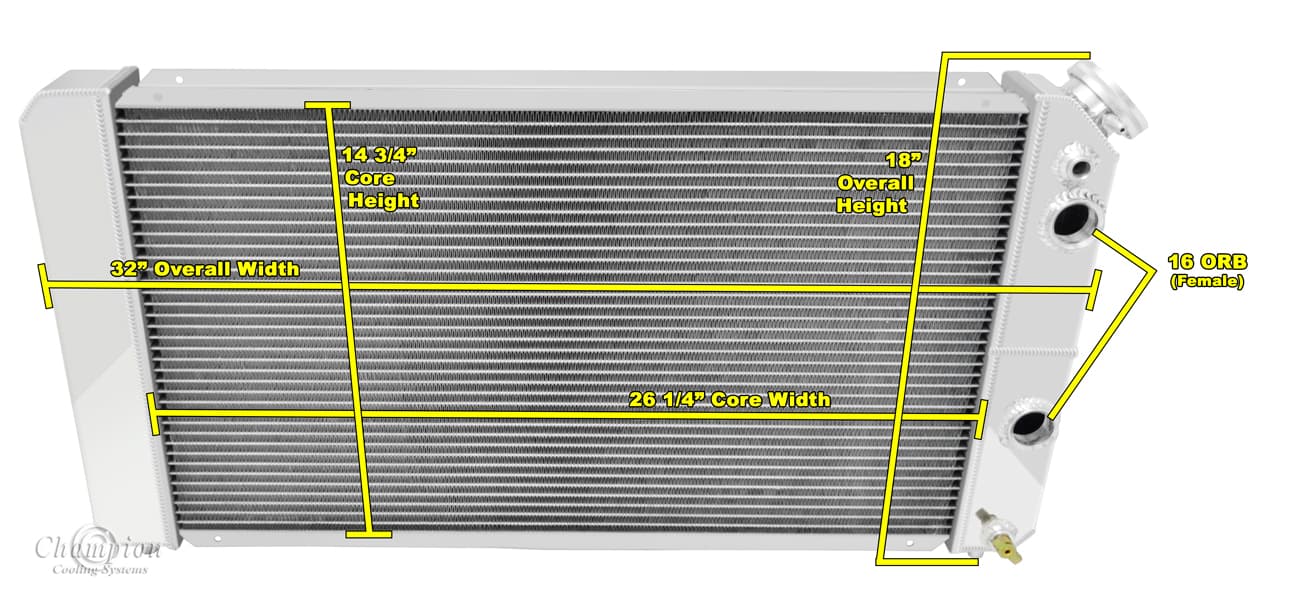

| Core Width | 26.25 |
|---|---|
| Tank Width | 2.25 |
| Core Height | 14.75 |
| Core Material | Aluminum |
| Mounting Type | Pin |
| Overall Width | 32 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 16ORB(Female) |
| Inlet Location | Passenger |
| Overall Height | 18 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 16ORB(Female) |
| Outlet Location | Passenger |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Transmission Oil Cooler | No |
