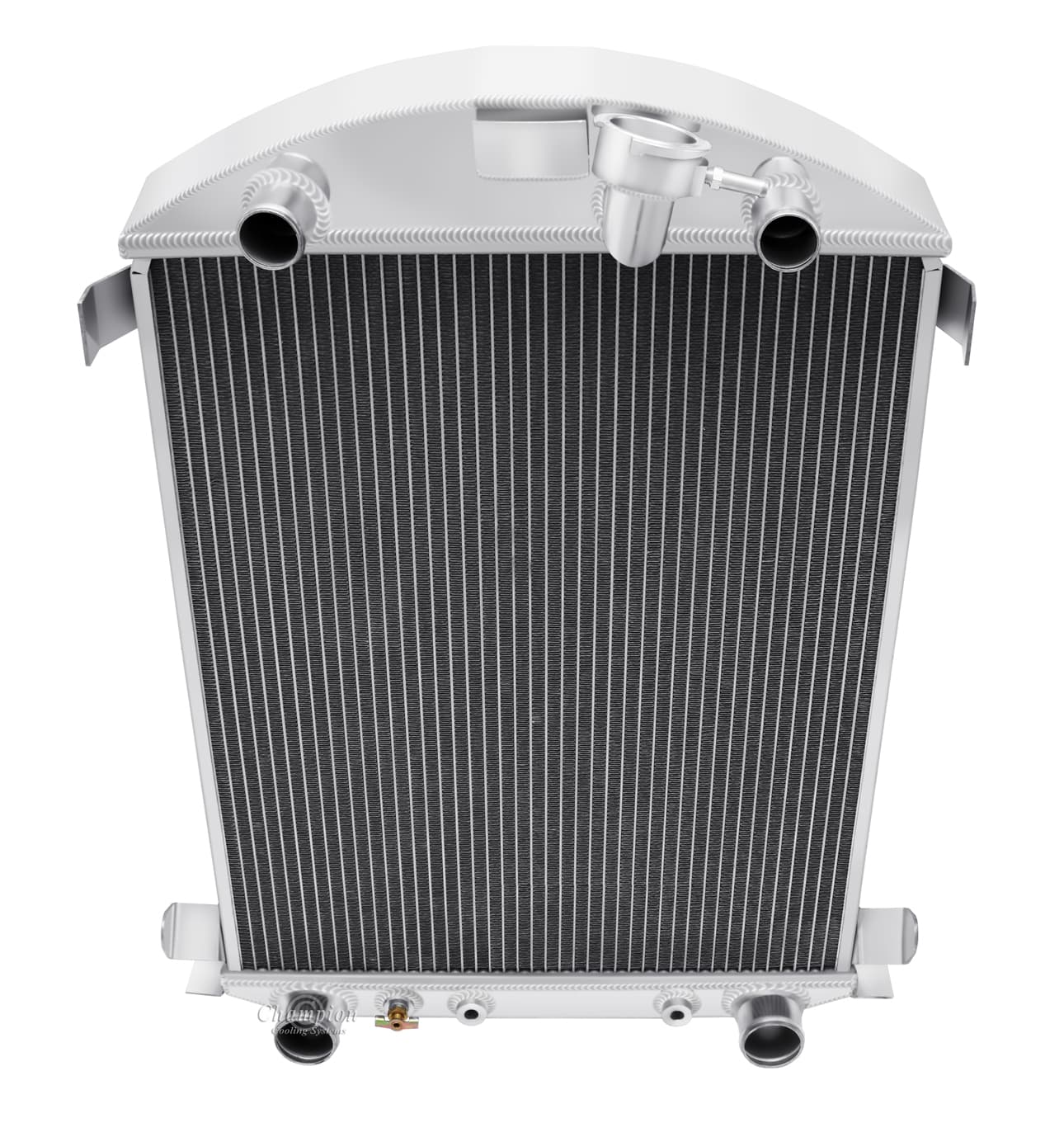

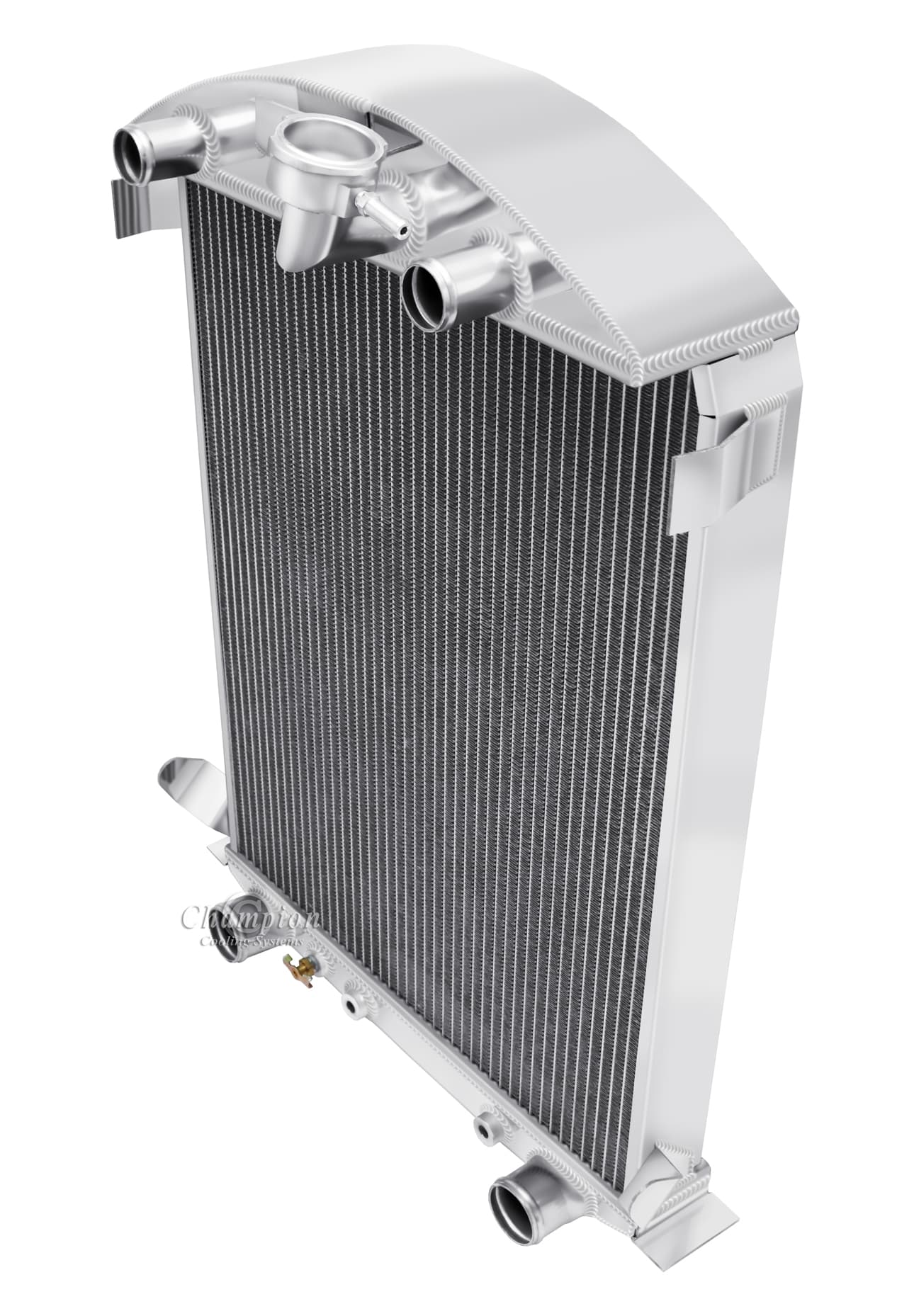

1930-1931 Model A w/Flathead Configuration 3 Row All Aluminum Radiator

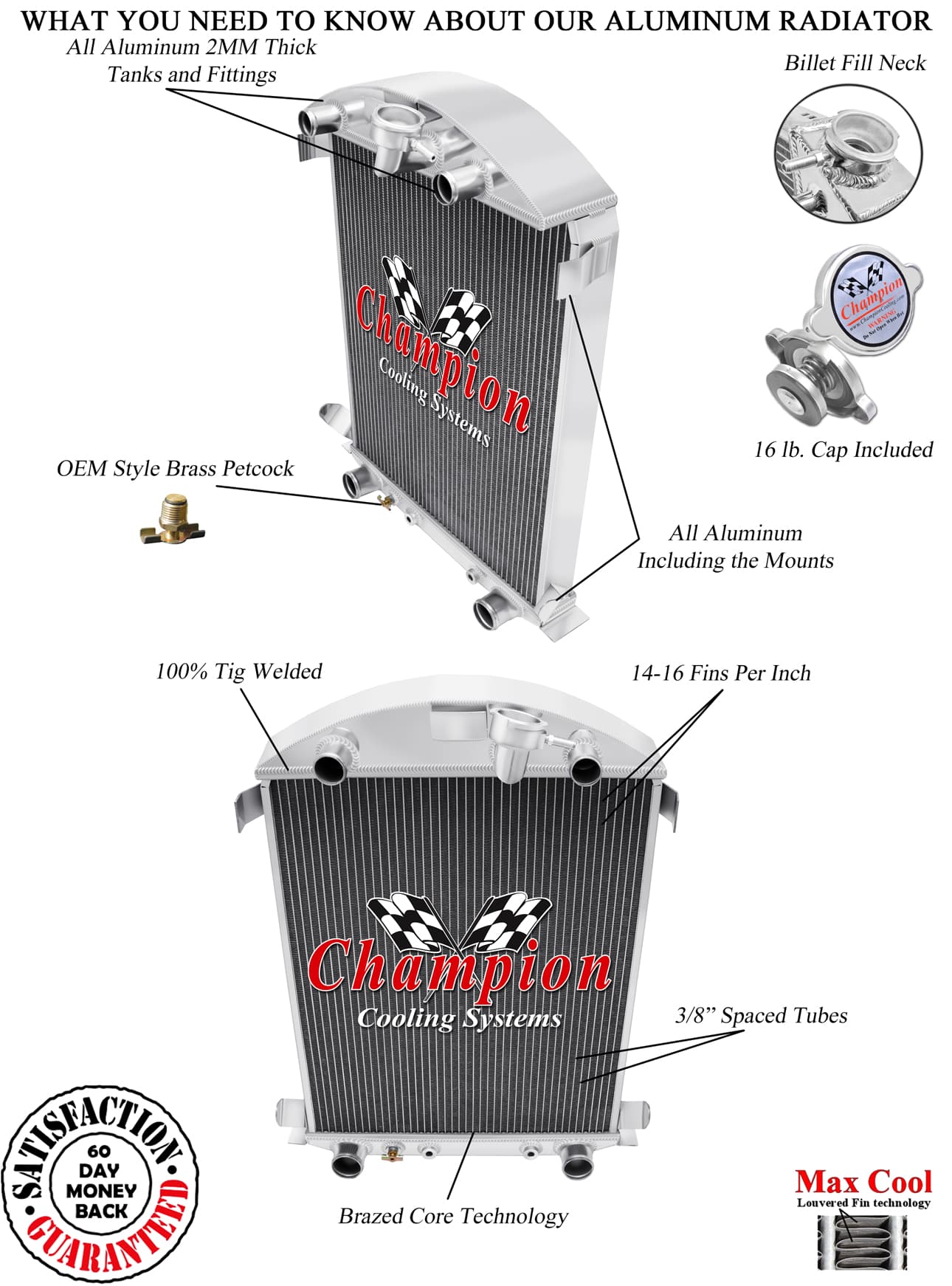

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

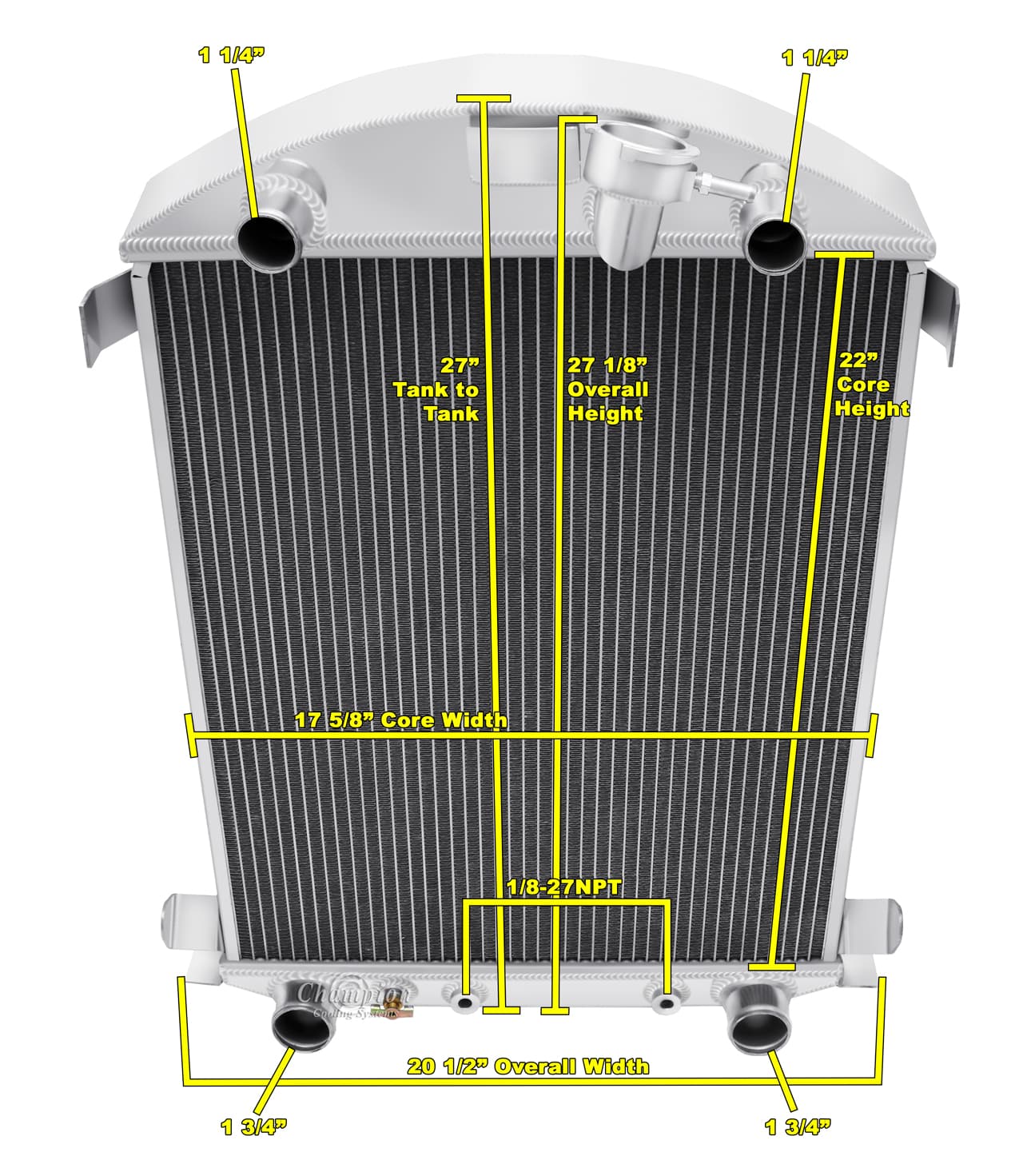

Specifications
| Core Width | 17.625 |
|---|---|
| Tank Width | UPPER: 4.125 - LOWER: 2.625 |
| Core Height | 22 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 20.5 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 1.25 |
| Inlet Location | Dual - Driver & Pass |
| Overall Height | 27.125 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 1.75 |
| Outlet Location | Dual - Driver & Pass |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/8-27NPT |
