40-41 Chevrolet Special Deluxe Aluminum Radiator — Champion 4041
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

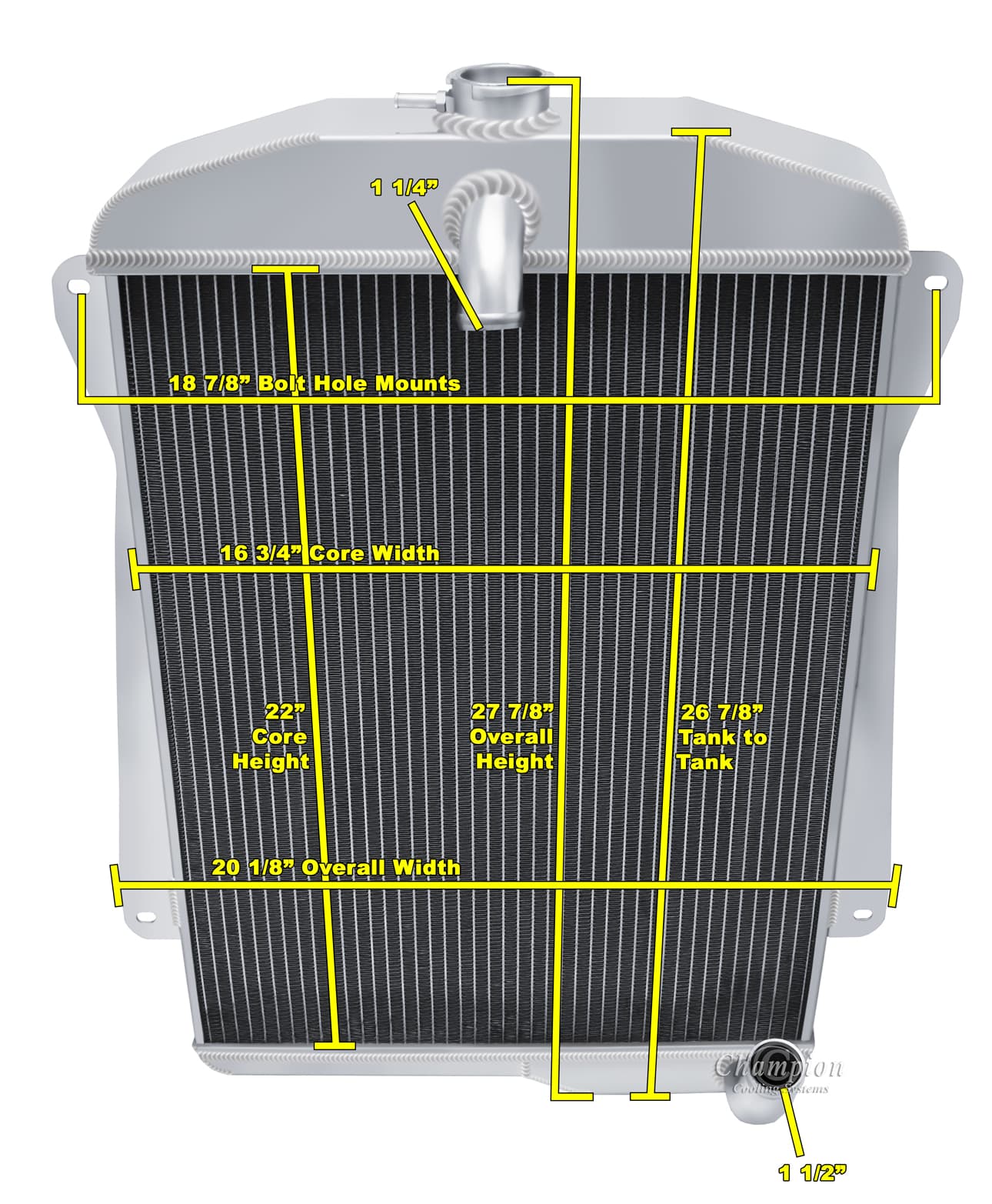

Specifications
| Core Width | 16.75 |
|---|---|
| Tank Width | UPPER: 3.25 - LOWER: 2.375 |
| Core Height | 22 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 20.125 |
| Tank Material | Aluminum |
| Core Thickness | 2 |
| Inlet Diameter | 1.25 |
| Inlet Location | Center |
| Overall Height | 27.875 |
| Core Tube Width | 0.56000000000000005 |
| Outlet Diameter | 1.5 |
| Outlet Location | Passenger |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | No |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
From $287.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
40-41 Chevrolet Special Deluxe Aluminum Radiator — Champion 4041—
$287.00
