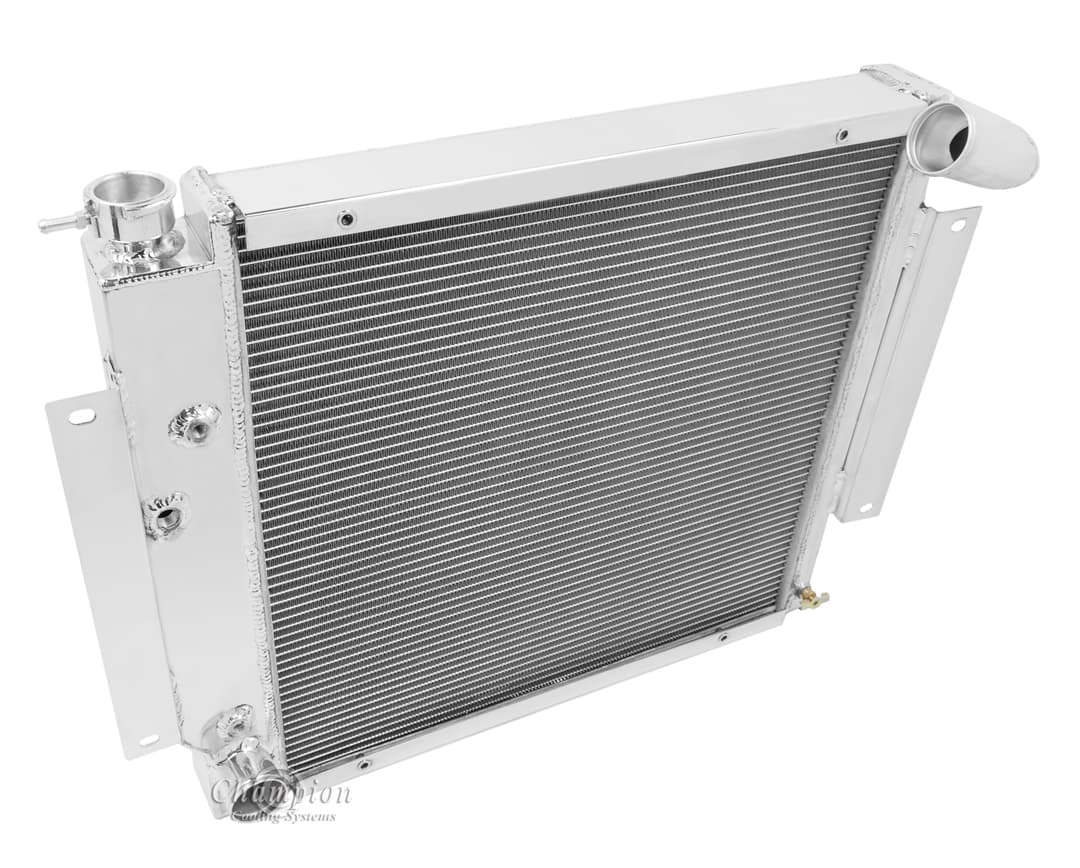

71-80 International Scout II Aluminum Radiator — Champion 7180

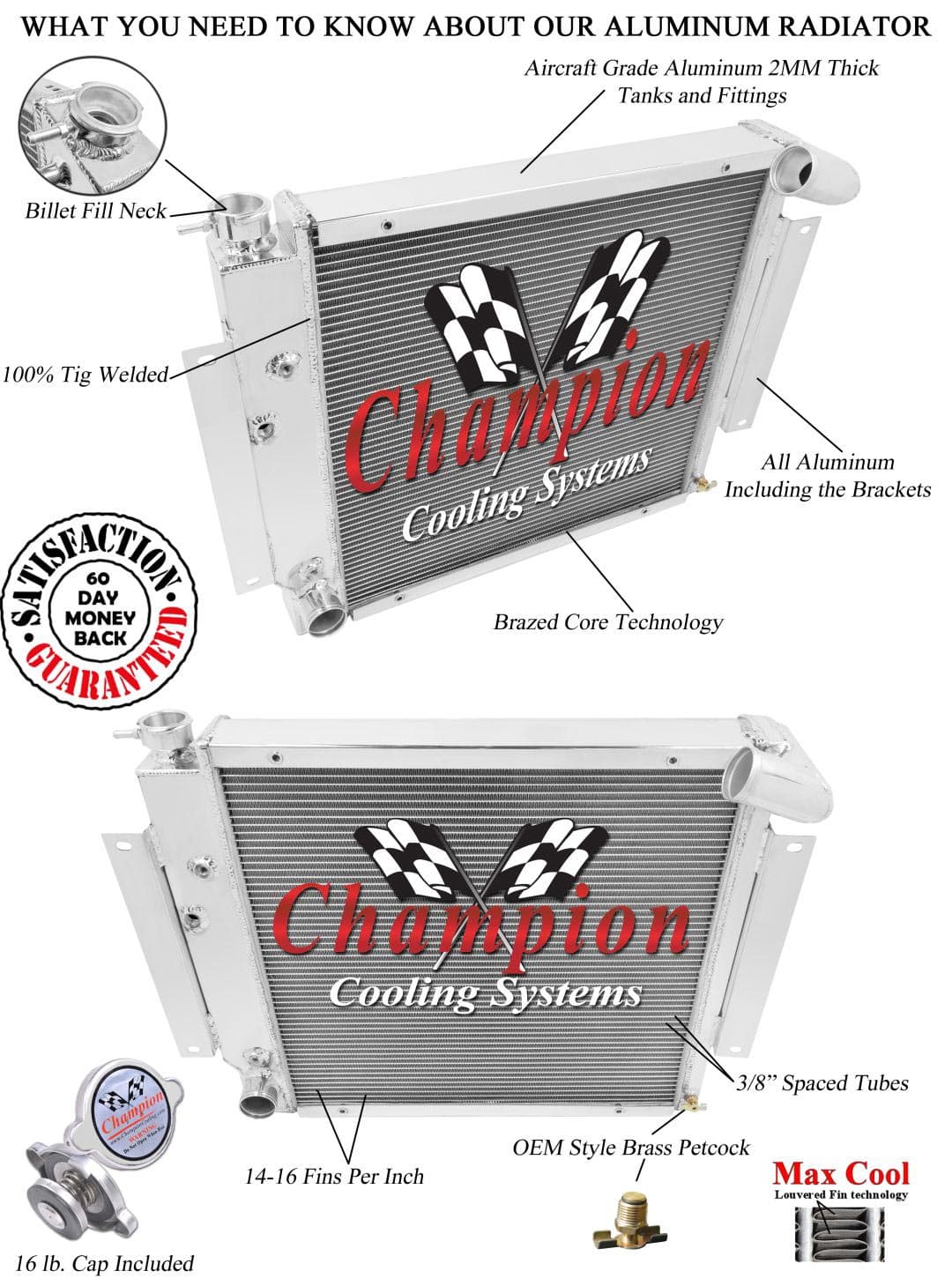

Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
Specifications
| Core Width | 21.625 |
|---|---|
| Tank Width | 2.75 |
| Core Height | 22.375 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 29.75 |
| Tank Material | Aluminum |
| Core Thickness | 2.25 |
| Inlet Diameter | 2 |
| Inlet Location | Passenger |
| Overall Height | 22.75 |
| Core Tube Width | 0.63 |
| Outlet Diameter | 2 |
| Outlet Location | Driver |
| Core Row Quantity | 3 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 1/8-27NPT |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
From $287.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
71-80 International Scout II Aluminum Radiator — Champion 7180—
$287.00
