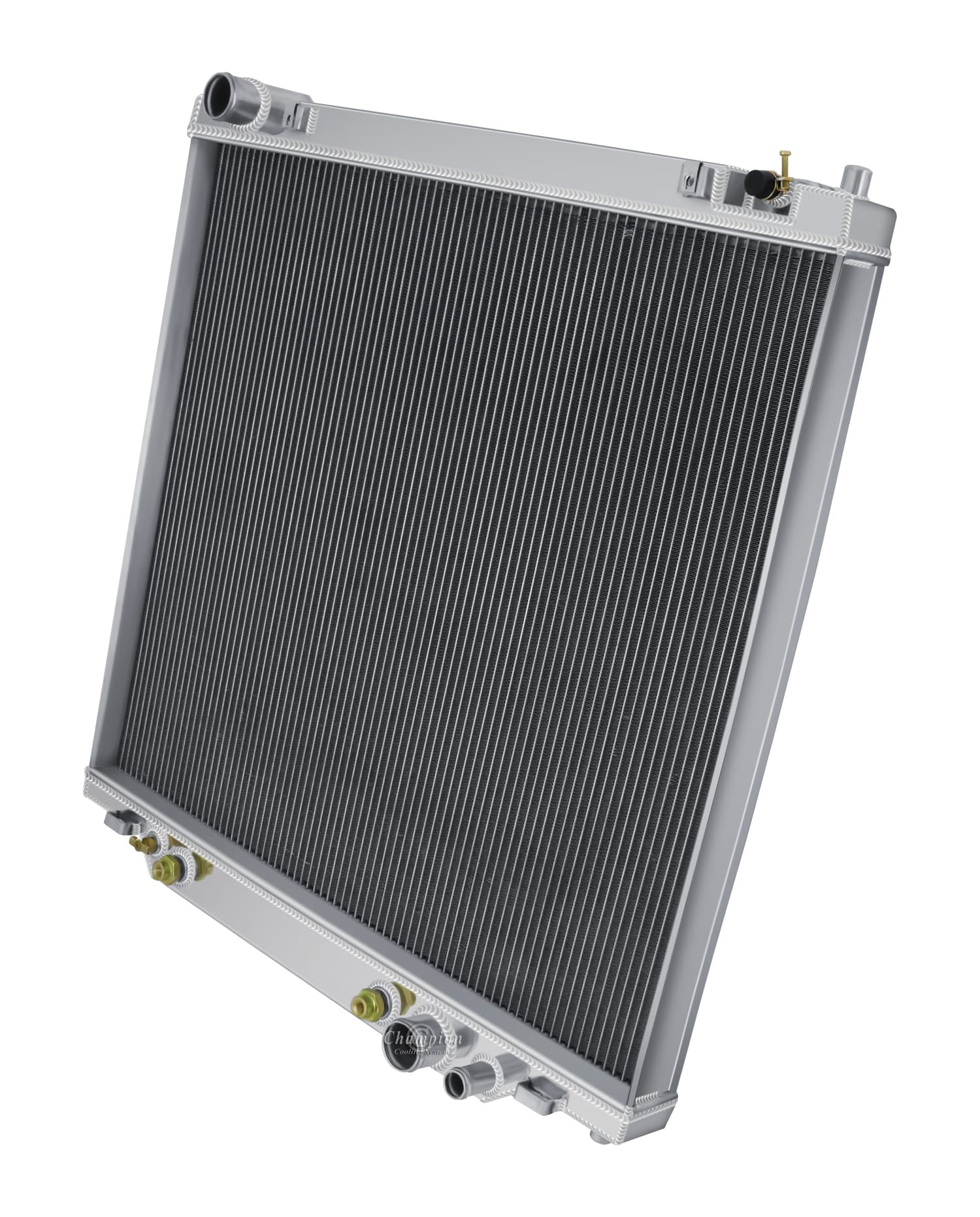

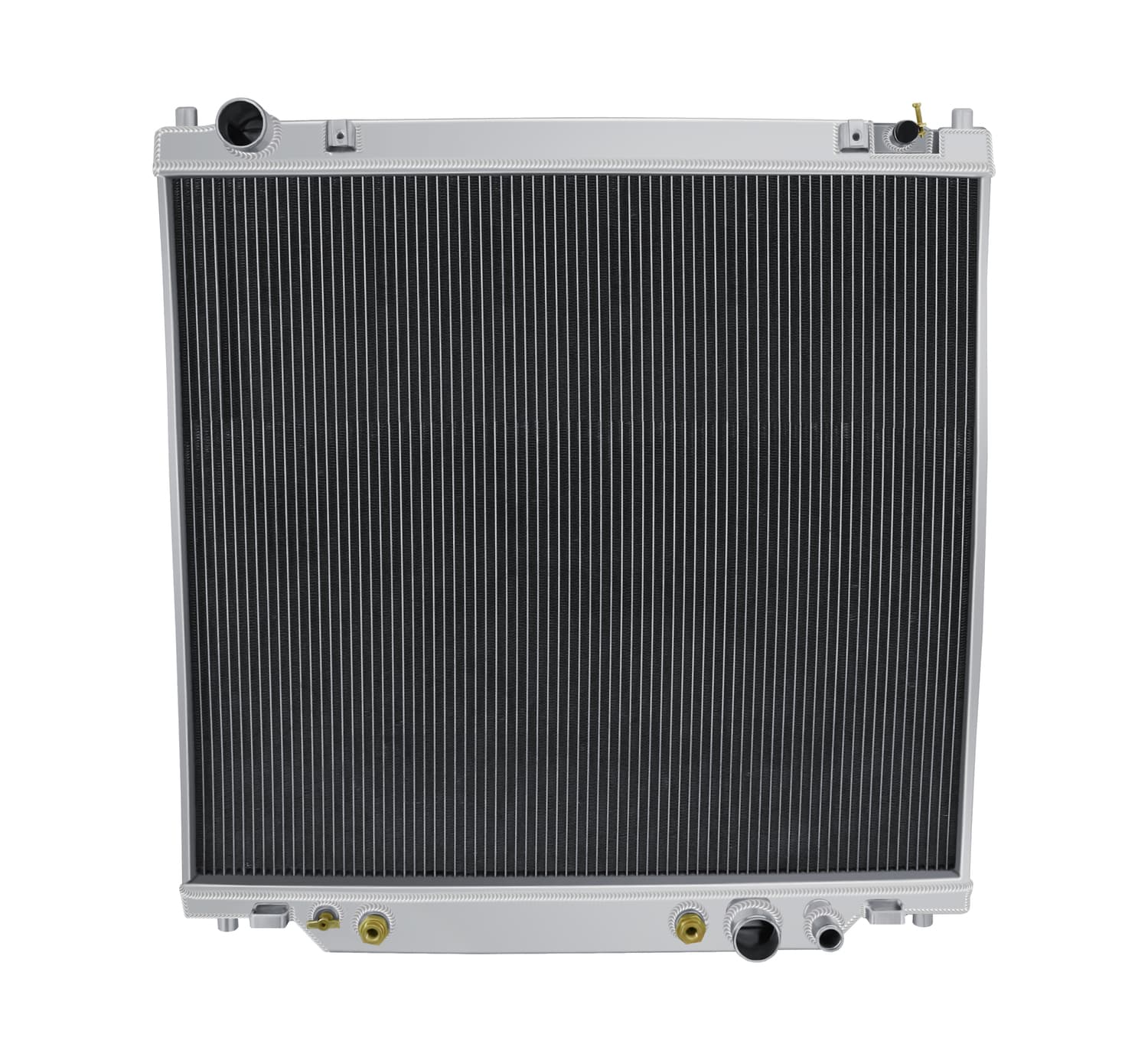

1999-2003 F-Series, 2000-2005 Excursion 1 Row All Aluminum Radiator
Champion Cooling 3 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

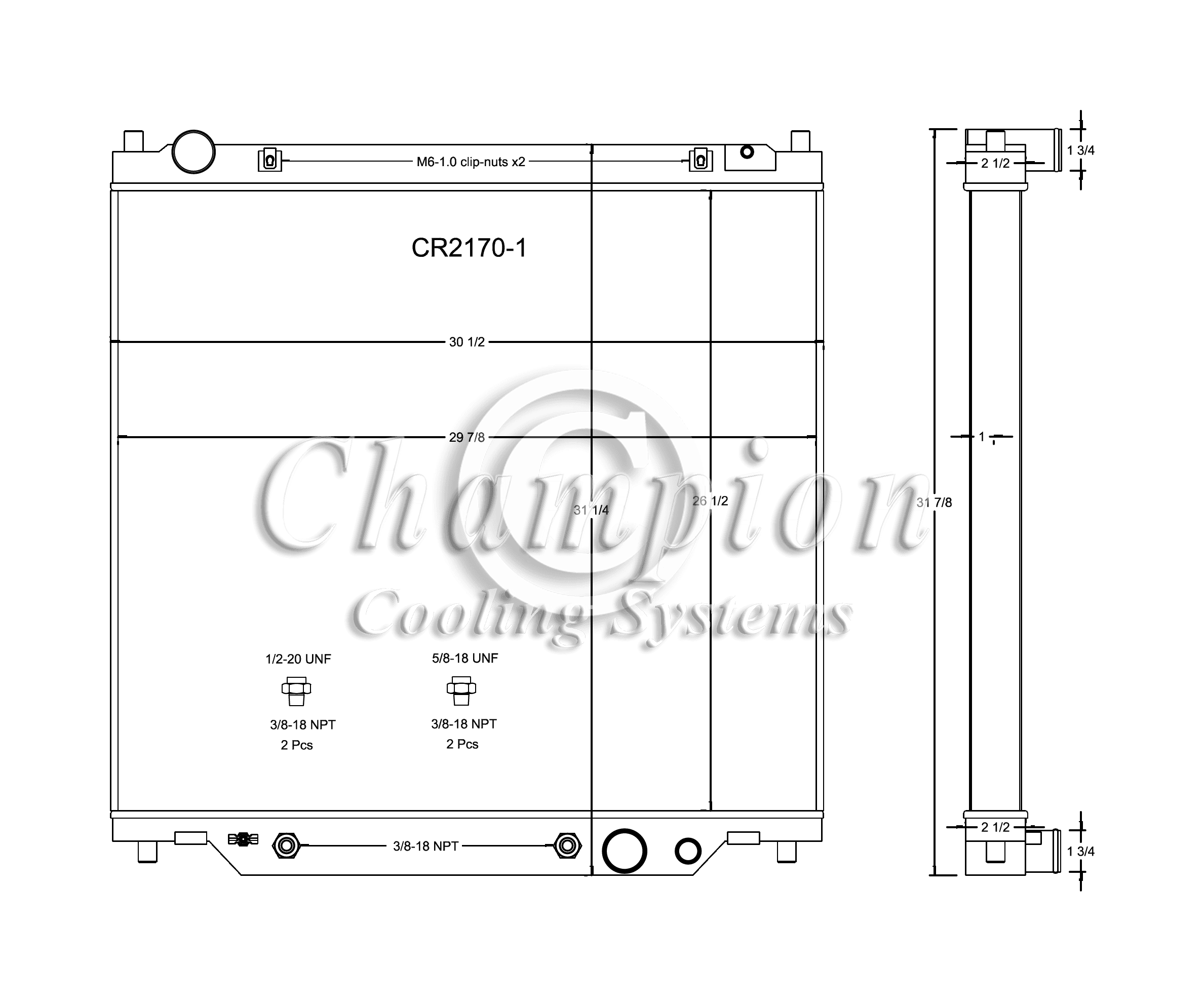

Specifications
| Core Width | 29.875 |
|---|---|
| Tank Width | 2.5 |
| Core Height | 26.5 |
| Core Material | Aluminum |
| Mounting Type | Pin |
| Overall Width | 30.5 |
| Tank Material | Aluminum |
| Core Thickness | 1 |
| Inlet Diameter | 1.75 |
| Inlet Location | Driver |
| Overall Height | 31.875 |
| Outlet Diameter | 1.75 |
| Outlet Location | Passenger |
| Core Row Quantity | 1 |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | Yes |
| Transmission Oil Cooler Fitting Type | 3/8-18NPT |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
From $315.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
1999-2003 F-Series, 2000-2005 Excursion 1 Row All Aluminum Radiator—
$315.00
