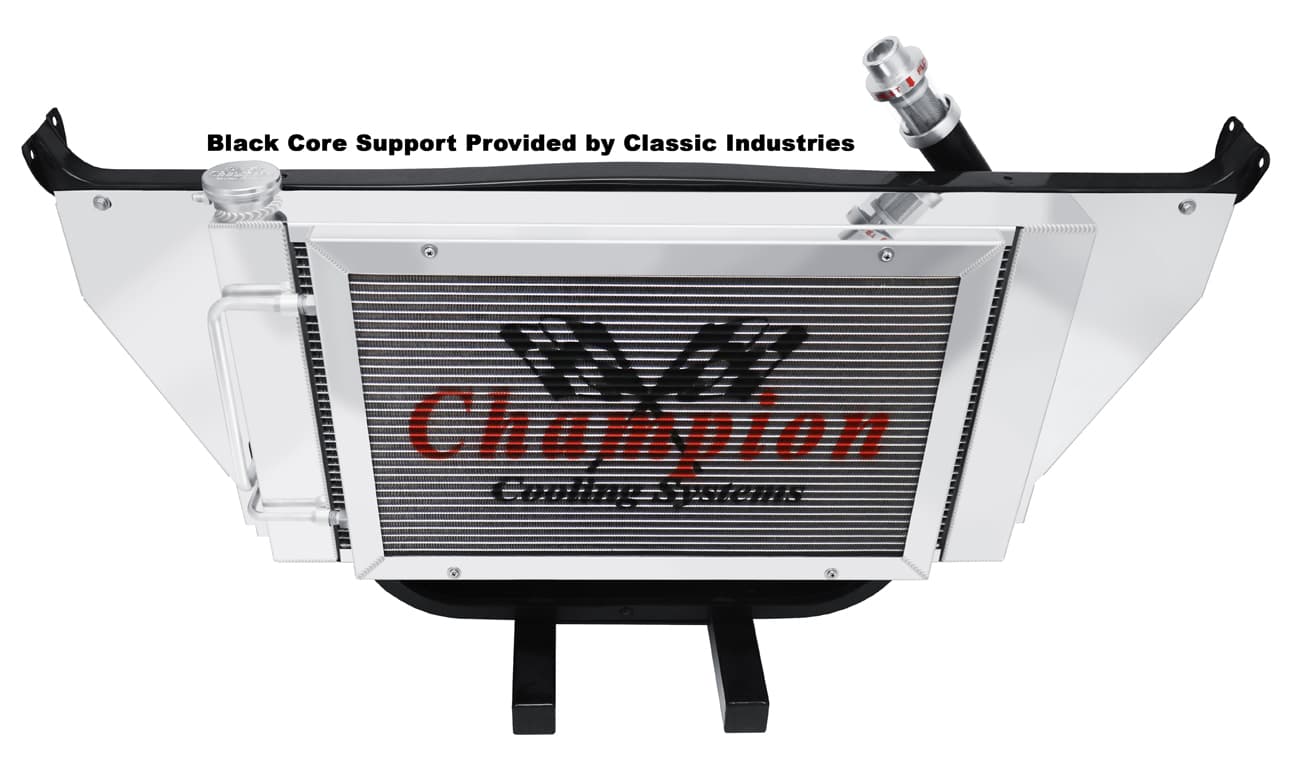

Name: Single Pass Radiator, Shroud, and Fans For 55-57 Chevy Cars -Grill side cross flow
Brand: Champion Cooling Systems
SKU: CS5057SP
Price: 975 USD
Availability: InStock

Single Pass Radiator, Shroud, and Fans For 55-57 Chevy Cars -Grill side cross flow

Champion Cooling 2 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…

This part fits: show vehicles

1955–1957 Chevrolet Bel Air — 4.3L 265ci V8 / 4.6L 283ci V8
1955–1957 Chevrolet Nomad — 4.3L 265ci V8 / 4.6L 283ci V8
1955–1957 Chevrolet One-Fifty Series — 4.3L 265ci V8 / 4.6L 283ci V8
1955–1957 Chevrolet Two-Ten Series — 4.3L 265ci V8 / 4.6L 283ci V8
1957 Chevrolet Del Ray — 4.3L 265ci V8 / 4.6L 283ci V8

Specifications

Core Width	26
Tank Width	2.875
Core Height	16
Core Material	Aluminum
Mounting Type	Mounting Bung 5/16-18
Overall Width	31.75
Tank Material	Aluminum
Core Thickness	2.25
Inlet Diameter	16ORB(Female)
Inlet Location	Driver
Overall Height	17.125
Outlet Diameter	16ORB(Female)
Outlet Location	Passenger
Core Row Quantity	2
Down Flow Or Cross Flow Type	Cross Flow
Internal Transmission Oil Cooler	No

Product Information

Shipping & Returns

Required fittings

This radiator has ORB ports — it needs an inlet and an outlet fitting to connect your hoses.

Inlet fitting

Outlet fitting

From $975.00

Expedited shipping available at checkout — overnight options for when the project can’t wait.

Single Pass Radiator, Shroud, and Fans For 55-57 Chevy Cars -Grill side cross flow—

$975.00

From $975.00

Expedited shipping available at checkout — overnight options for when the project can’t wait.

Single Pass Radiator, Shroud, and Fans For 55-57 Chevy Cars -Grill side cross flow—

$975.00

Complete Your Cooling System

Parts matched to work together with this product.

The shroud, fans, and relay ship together in one box — the radiator ships separately on its own. Order together and skip paying separate shipping later.
