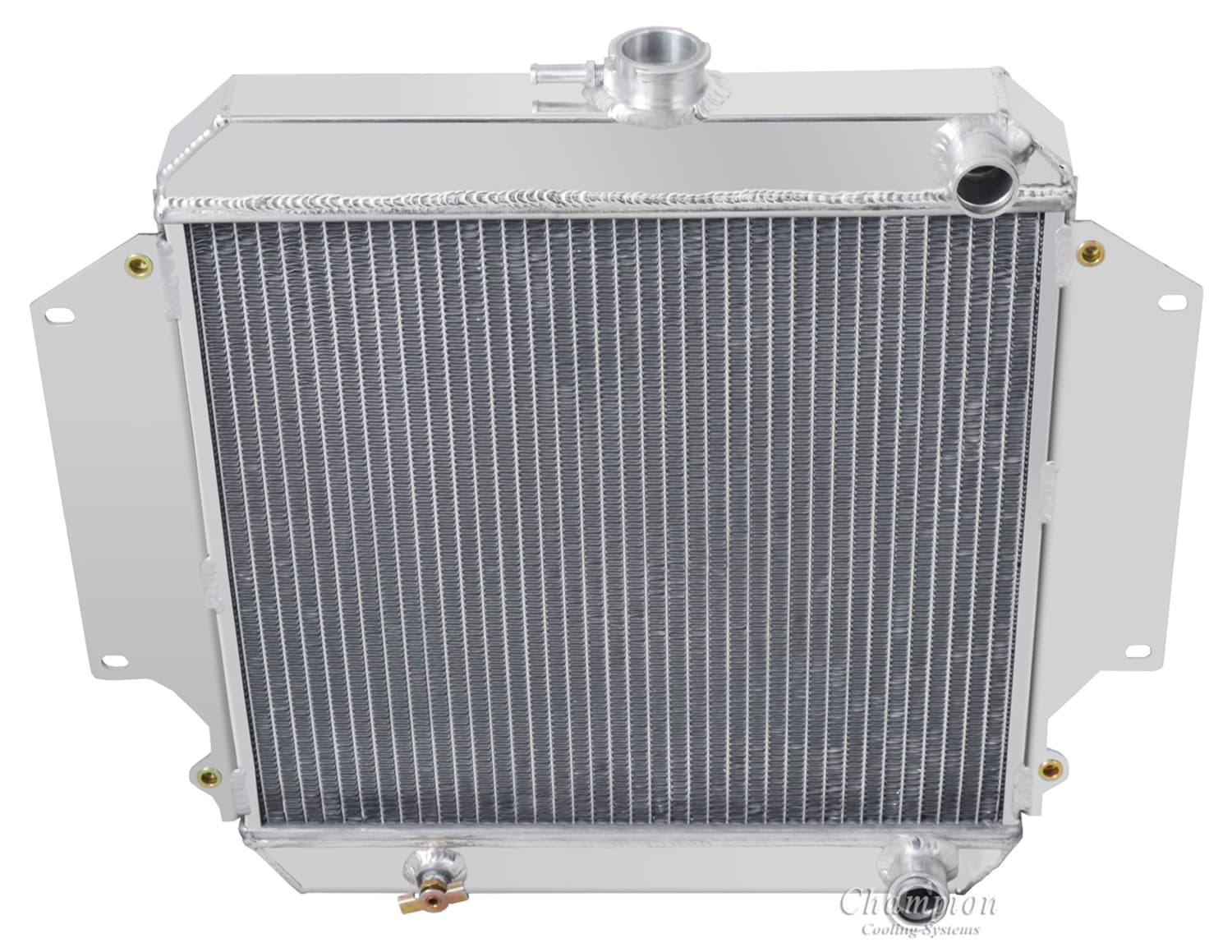

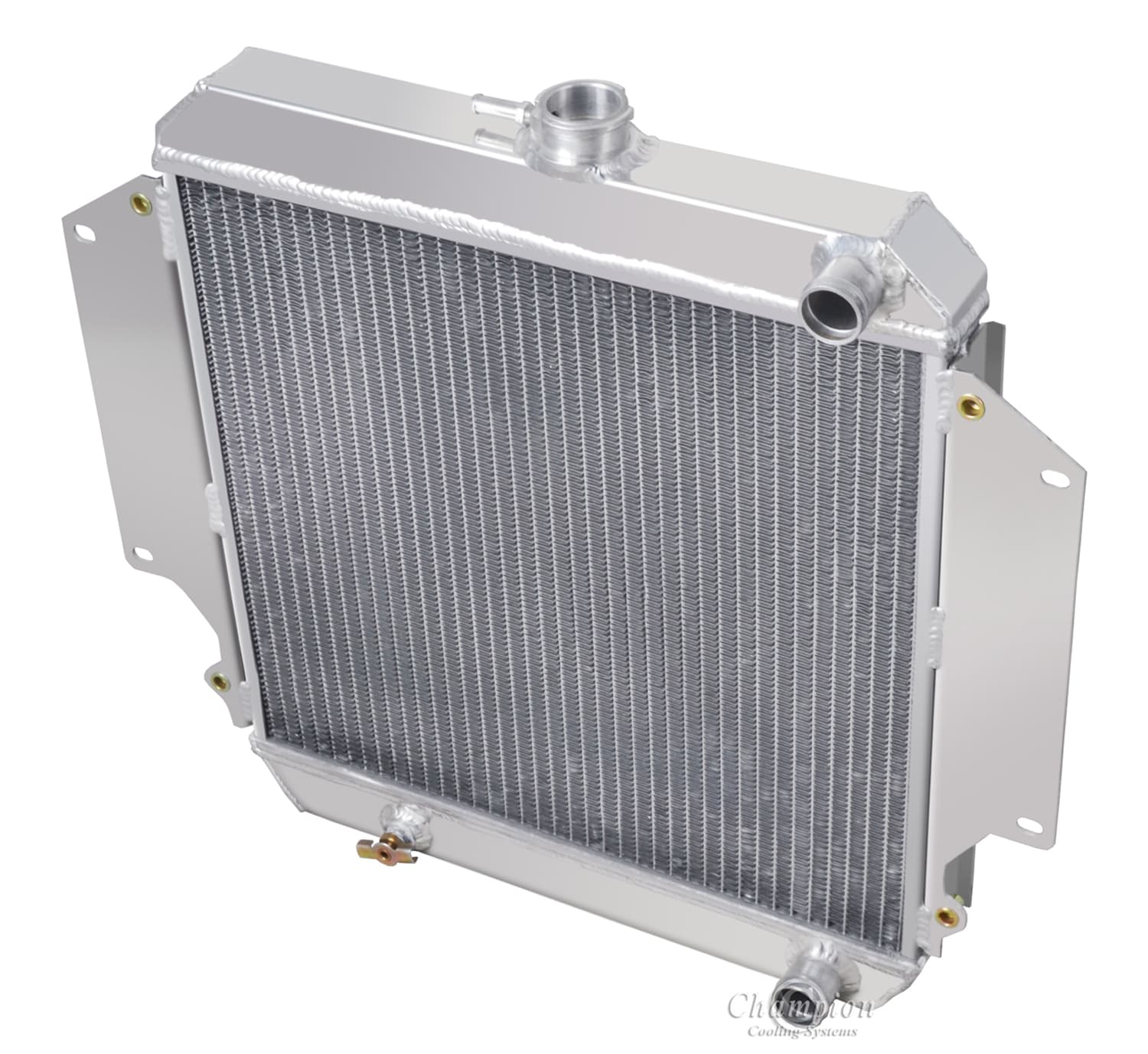

86-88 Suzuki Samurai Aluminum Radiator — Champion 170

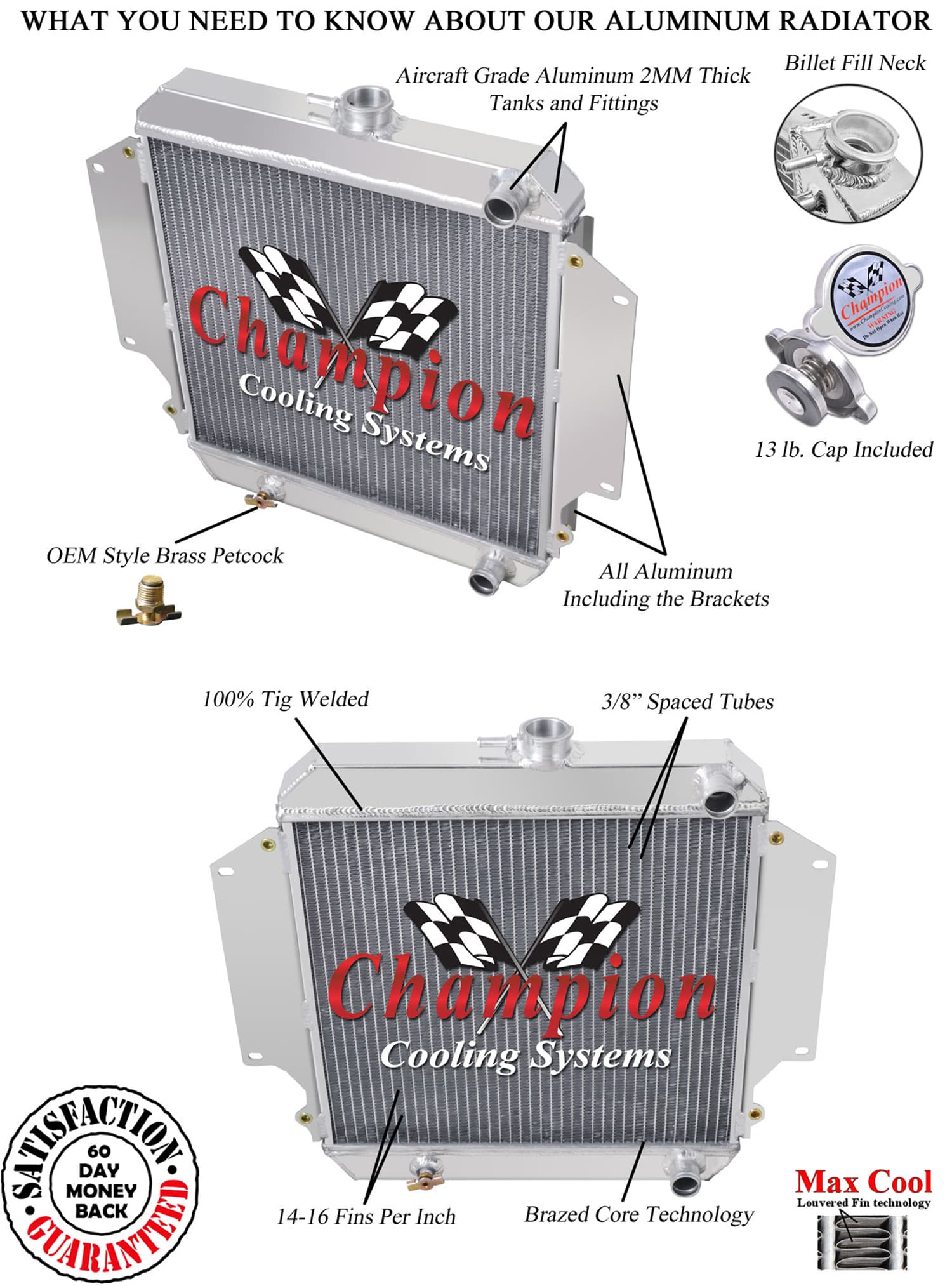

Champion Cooling 2 Row All Aluminum Radiator Made With Aircraft Grade Aluminum…
Specifications

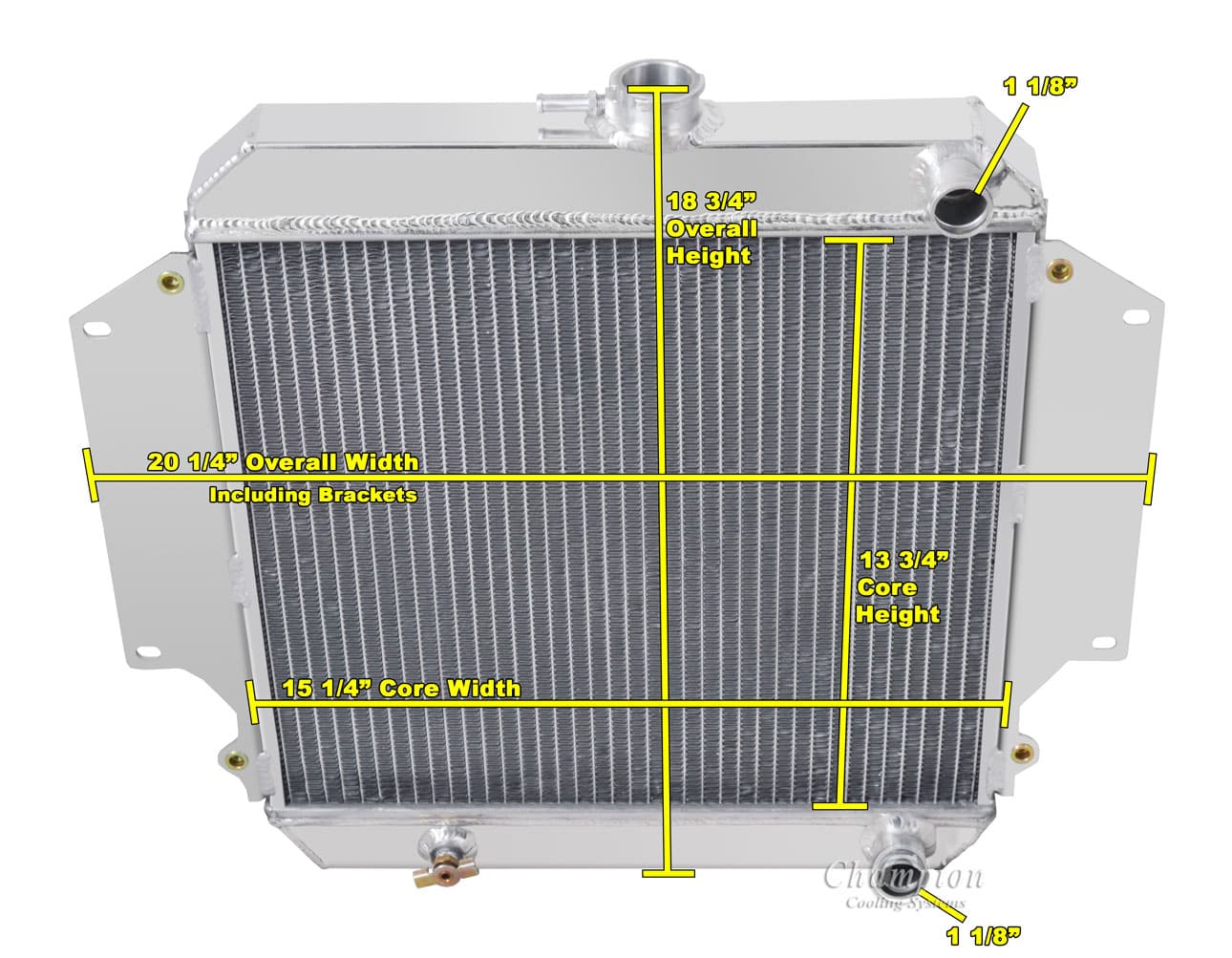

| Core Width | 15.25 |
|---|---|
| Tank Width | 2 |
| Core Height | 13.75 |
| Core Material | Aluminum |
| Mounting Type | Bracket |
| Overall Width | 20.25 |
| Tank Material | Aluminum |
| Core Thickness | 1.5 |
| Inlet Diameter | 1.125 |
| Inlet Location | Passenger |
| Overall Height | 18.75 |
| Core Tube Width | 0.75 |
| Outlet Diameter | 1.125 |
| Outlet Location | Passenger |
| Core Row Quantity | 2 Row |
| Filler Neck Attached | Yes |
| Down Flow Or Cross Flow Type | Down Flow |
| Internal Transmission Oil Cooler | No |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
From $237.00
Expedited shipping available at checkout — overnight options for when the project can’t wait.
86-88 Suzuki Samurai Aluminum Radiator — Champion 170—
$237.00
